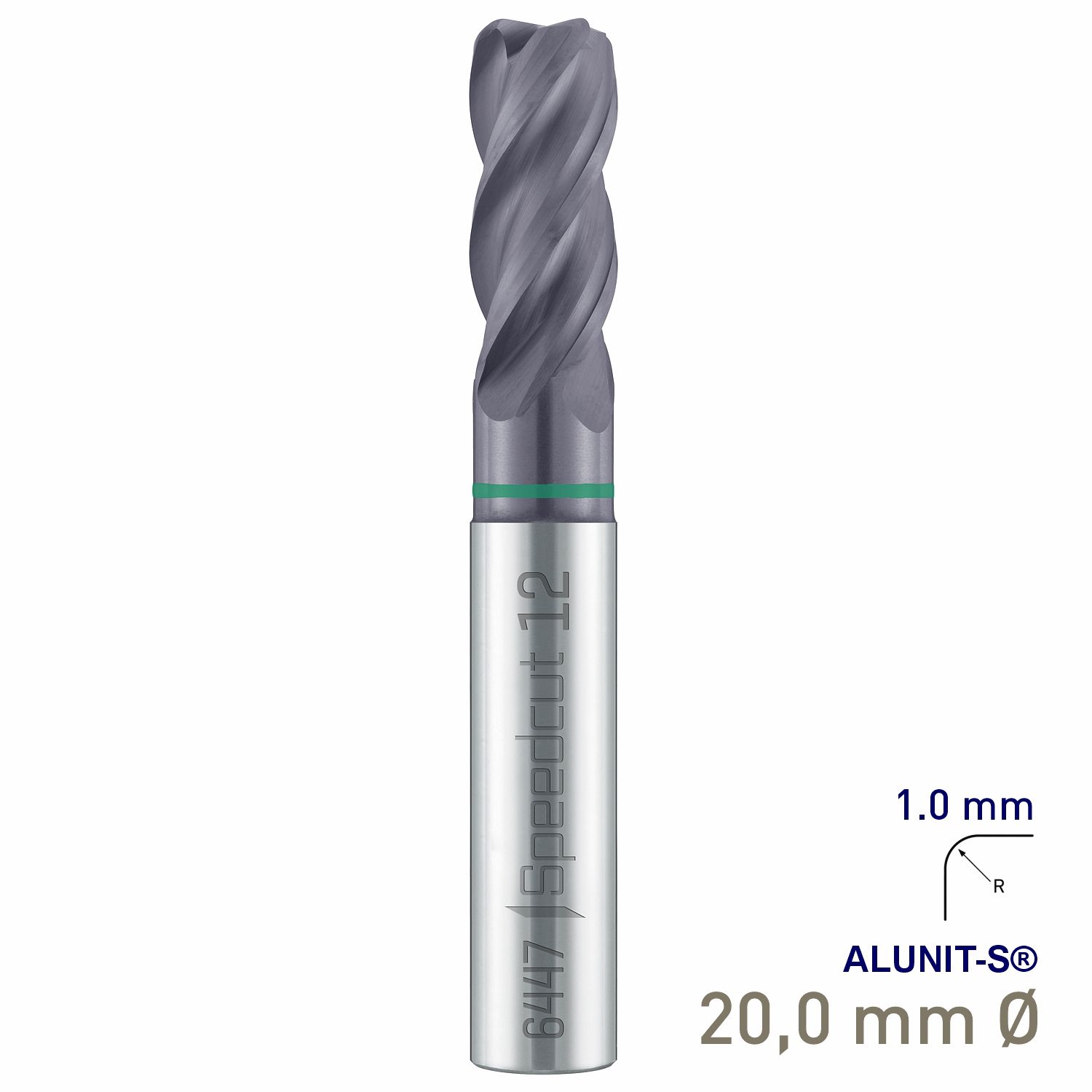

MAYKESTAG Speedcut Universal Solid Carbide Corner Radius End Mill 20.00mm R1 Z4 ALUNIT-S

Maykestag Speedcut Universal Solid Carbide Corner Radius End Mill 20.00mm R1 Z4 ALUNIT-S

High-performance 20mm Maykestag Speedcut Universal solid carbide corner radius end mill with 1mm radius, four flutes, unequal 35°–38° spiral angles and ALUNIT-S coating. The long-series, necked design with DIN 6535-HA cylindrical shank is designed for universal milling applications including finishing, rough-finishing and roughing with one versatile tool.

The Maykestag Code 6447 Speedcut Universal is a high-performance solid carbide corner radius end mill for universal machining applications. This 20.00mm version features a precise 1.00mm corner radius, four cutting edges and unequal spiral angles of 35°–38°. The variable spiral geometry promotes smooth, vibration-reduced running and supports excellent surface quality during demanding milling operations.

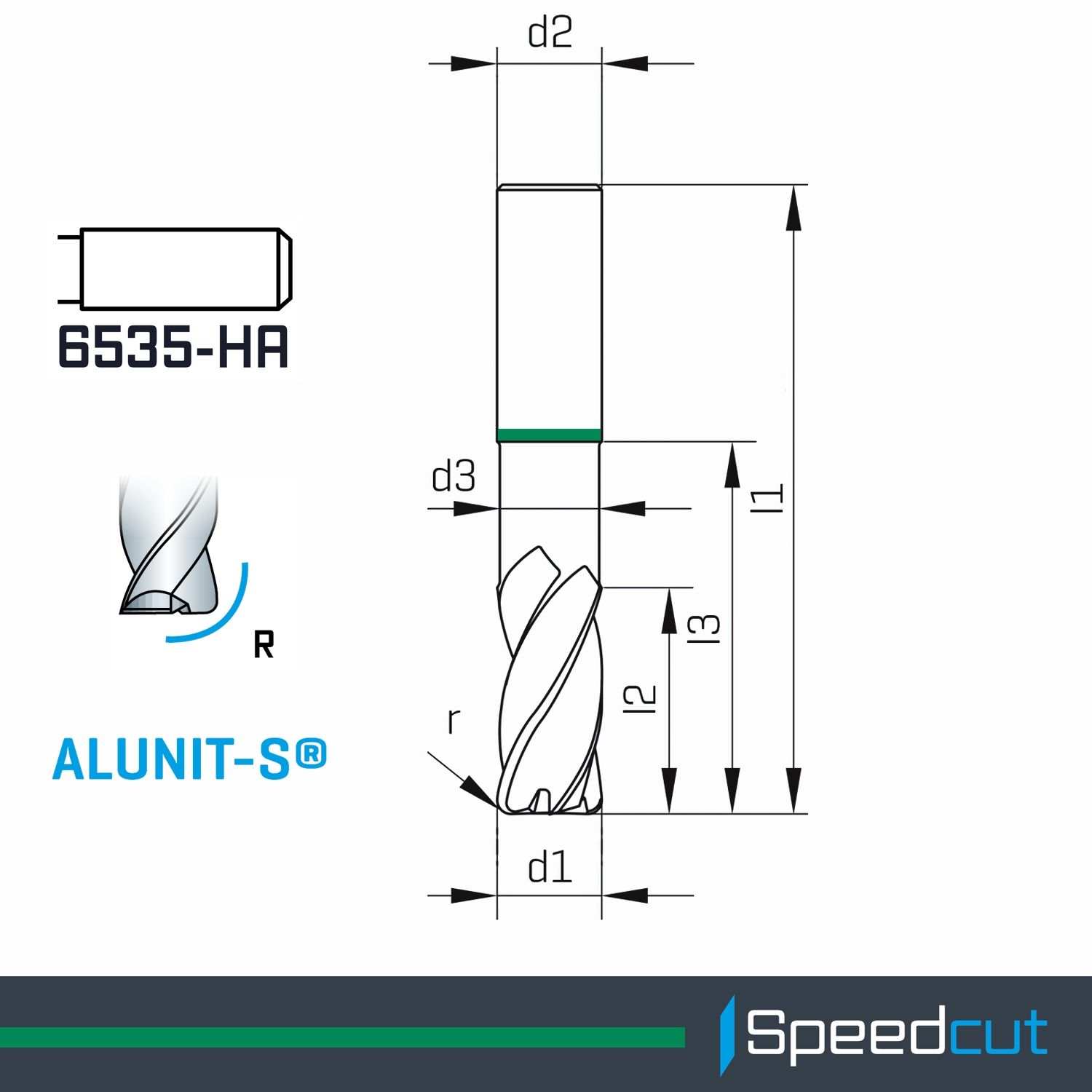

Manufactured from solid carbide and finished with a ALUNIT-S coating, the tool combines high rigidity with increased wear resistance. The long, necked geometry provides additional clearance and reach, while the 20mm h6 cylindrical shank conforms to DIN 6535-HA. Maykestag specifies the tool for universal use covering fine finishing, finishing, rough-finishing and roughing operations with one tool.

Product highlights

• Speedcut Universal: Maykestag&s high-performance universal solid carbide milling solution for demanding machining applications.
• 20.00mm cutting diameter: Large-diameter geometry for productive material removal and finishing.
• 1.00mm corner radius: Strengthens the cutting edge and produces controlled transitions between machined surfaces.
• Four-flute design: Four cutting edges provide a productive balance between cutting capacity, stability and surface finish.
• Unequal 35°–38° spiral angles: Variable helix geometry promotes smooth, vibration-reduced running and very good surface quality.
• ALUNIT-S coating: Wear-resistant coating for demanding carbide milling applications.
• Solid carbide construction: High rigidity and dimensional stability for precision milling.
• Long-series, necked design: Provides extended reach and additional clearance around deeper contours and recessed features.
• DIN 6527L: Long solid carbide milling tool configuration.
• DIN 6535-HA shank: Cylindrical shank configuration for compatible milling toolholders.
• 20mm h6 shank: Precision shank diameter for accurate toolholding.
• Universal machining: Suitable for fine finishing, finishing, rough-finishing and roughing operations.
• High cutting performance: Designed to achieve high material-removal performance while maintaining good surface quality.

Designed for Productive Universal Milling

The 1mm corner radius provides a stronger cutting edge than a sharp-cornered square end mill while allowing the tool to machine walls, floors and transitions efficiently. This makes the Speedcut Universal useful for profiling, pocketing, contouring and general-purpose milling operations.

The unequal 35°–38° spiral angles are designed to produce a smooth, vibration-reduced cutting action and very good surface quality. Combined with the four-flute geometry, long necked design and ALUNIT-S coating, the Code 6447 is intended to provide high cutting performance across a broad range of professional milling applications.
