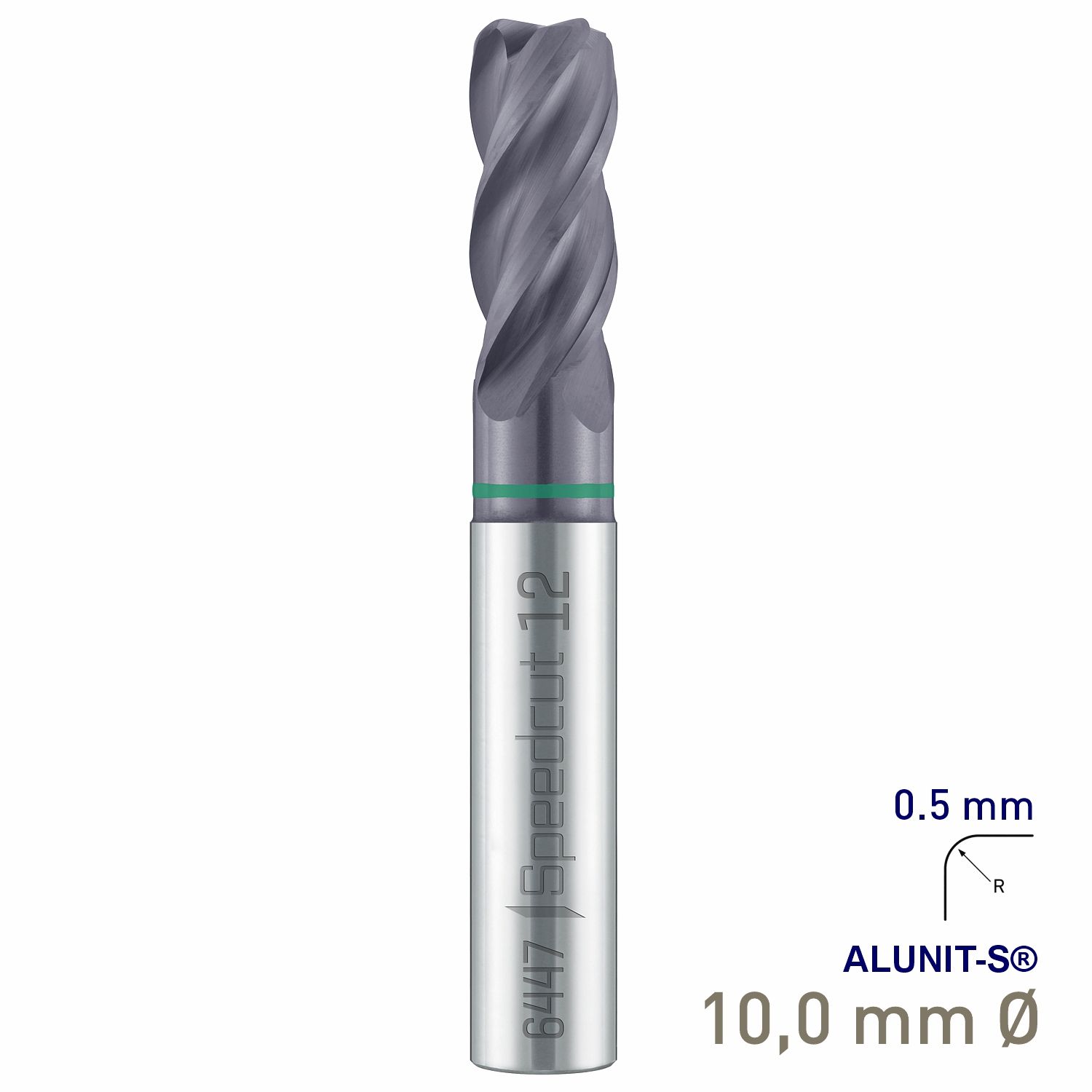

MAYKESTAG Solid Carbide Corner Radius End Mill 10mm R0.5 Speedcut Universal ALUNIT-S

Maykestag Solid Carbide Corner Radius End Mill 10mm R0.5 Speedcut Universal ALUNIT-S

Professional 10mm Speedcut Universal solid carbide corner radius end mill with a precise 0.5mm corner radius, long-series neck-relieved design, 4 flutes, unequal 35°–38° spiral angles and ALUNIT-S® coating for high-performance milling.

The Maykestag Code 6447 Speedcut Universal is a precision HPC milling cutter engineered for productive machining across a broad range of engineering materials. This 10mm version combines solid carbide construction with a 0.5mm corner radius, a relieved neck and four cutting flutes, creating a rigid and stable cutting geometry for accurate profiling, contouring, shoulder milling and general precision milling operations.

Its unequal 35°–38° spiral geometry provides a progressive cutting action, while the long-series neck-relieved construction gives valuable clearance behind the cutting section. Manufactured to DIN 6527 L, the cutter features a cylindrical DIN 6535-HA shank and Maykestag&s specified ALUNIT-S® coating.

Product highlights

• 10mm cutting diameter: Robust professional cutter for profiling, contouring, shoulder milling and general CNC machining.
• 0.5mm corner radius: Produces a controlled radiused transition while reinforcing the cutting corner.
• VHM solid carbide: Manufactured from solid carbide for excellent rigidity, dimensional stability and dependable machining performance.
• Speedcut Universal: Part of Maykestag&s versatile Speedcut Universal range for machining a broad selection of engineering materials.
• HPC geometry: High-performance cutting geometry designed for productive milling under suitable machining conditions.
• 4-flute design: Four cutting edges provide productive material removal and stable milling performance.
• Unequal spiral angles: 35°–38° unequal spiral geometry provides a progressive cutting action.
• Neck-relieved construction: The reduced 9.50mm neck diameter provides clearance behind the cutting section for improved accessibility.
• ALUNIT-S® coating: Maykestag&s specified coating for the Code 6447 Speedcut Universal series.
• DIN 6527 L: Long-series end mill manufactured to the specified DIN dimensional standard.
• DIN 6535-HA shank: Precision cylindrical HA shank for accurate holding in suitable toolholding systems.
• Precision radius tolerance: Corner radius manufactured to a specified tolerance of ±0.005mm.

Built for Precise Universal Milling

The combination of the 10mm cutting diameter, 0.5mm corner radius and relieved 9.50mm neck gives this cutter an excellent balance of rigidity, cutting-edge strength and accessibility. Its four-flute configuration provides multiple cutting edges for productive milling, while the unequal 35°–38° spiral angles support a smooth and progressive cutting action. When used with the correct spindle speed, feed rate, toolholding and machining strategy, the Code 6447 is designed to deliver accurate and repeatable milling performance across its recommended material groups.
