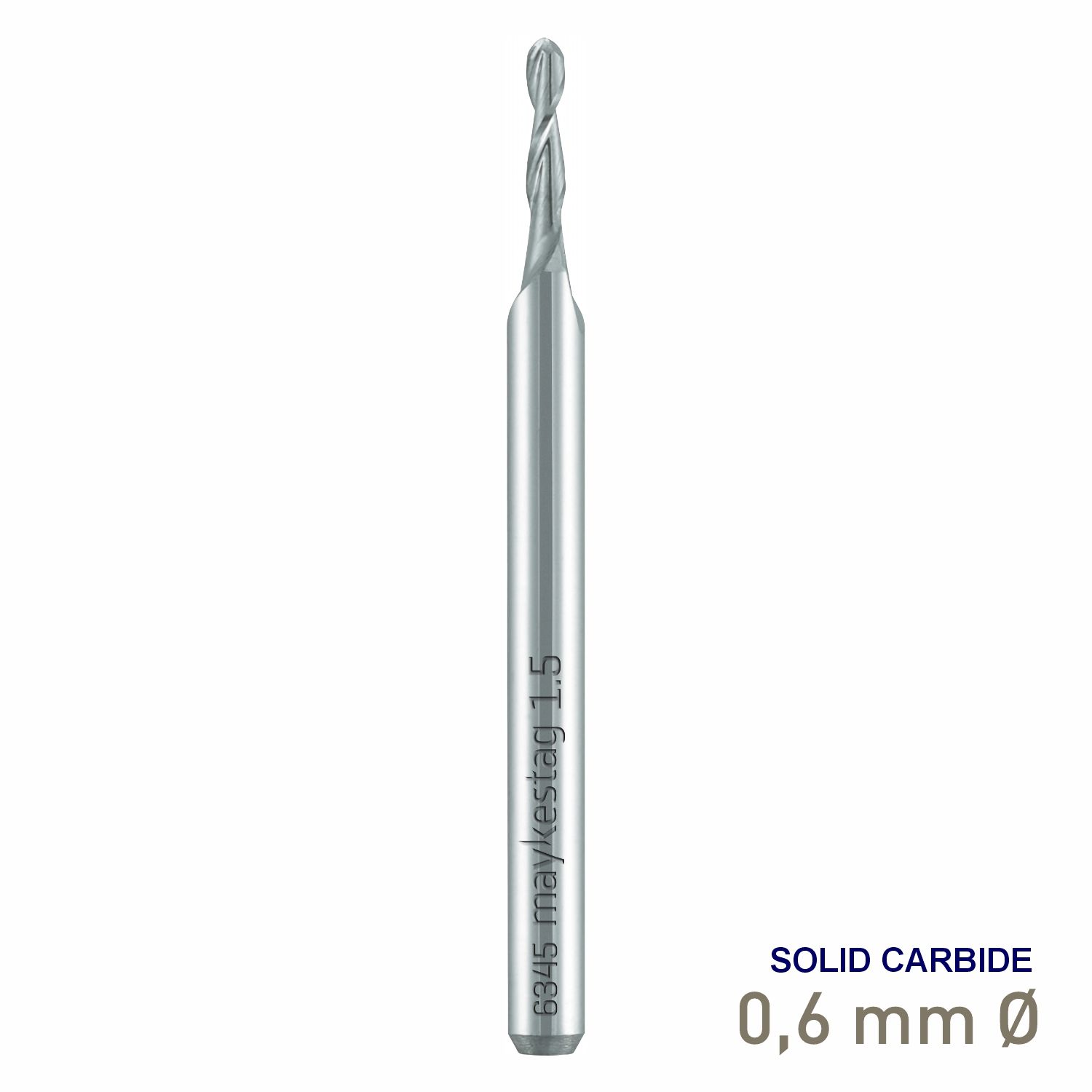

MAYKESTAG Solid Carbide Mini Ball Nose End Mill 0.60mm R0.30 Z2 Reinforced Shank

MAYKESTAG Solid Carbide Mini Ball Nose End Mill 0.60mm R0.30 Z2 Reinforced Shank
Sold Out
MAYKESTAG Solid Carbide Mini Ball Nose End Mill 0.60mm R0.30 Z2 Reinforced Shank
  • Stock: Sold Out
  • Cat No: MAY6345000601
  • SKU: MAY6345000601
  • UPC: 9002740934981
MAYKESTAG MAYKESTAG
Product Views: 0
Based on 0 reviews. - Write a review
Don't snooze, this offer ends in:
Day
Hour
Min
Sec
R 678.14
R 827.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Maykestag Solid Carbide Mini Ball Nose End Mill 0.60mm R0.30 Z2 Reinforced Shank

Precision miniature ball nose milling with a reinforced shank. The Maykestag Code 6345 is a solid carbide mini ball nose end mill with two flutes, a short-series design and reinforced 3.00mm shank. This 0.60mm version features a 0.30mm ball radius and is designed for precise miniature contouring and 3D profiling applications.

The Maykestag Code 6345 0.60mm solid carbide mini ball nose end mill combines a miniature 0.60mm cutting diameter with a 0.30mm radius, two-flute geometry and a reinforced 3.00mm h6 shank. The short-series design provides a compact tool configuration for precision machining where small radii and fine surface detail are required.

With a 38mm overall length and 2mm cutting length, this miniature cutter provides a short and rigid configuration for detailed CNC milling, contouring and three-dimensional profiling. The solid carbide construction and 30° helix provide the specified Code 6345 cutting geometry.

What is a mini ball nose end mill?

A ball nose end mill has a rounded cutting end that allows the tool to produce smooth curved surfaces, contours and three-dimensional profiles. The rounded cutting geometry is particularly useful where small radii and detailed surface features are required.

This Maykestag cutter has a 0.60mm cutting diameter and 0.30mm radius, making it suitable for miniature machining applications where fine detail and very small radii are required.

Product Highlights

  • 0.60mm cutting diameter for miniature precision milling
  • 0.30mm ball radius for fine contours and 3D profiles
  • 2-flute solid carbide design
  • Reinforced 3.00mm h6 shank for increased tool support
  • Short-series configuration for compact machining setups
  • 30° helix angle
  • 38mm overall length
  • 2mm cutting length
  • DIN 6535-HA shank
  • Uncoated solid carbide construction
  • Type N geometry

Why use a miniature ball nose cutter?

Miniature ball nose end mills are used where conventional milling cutters are too large to reproduce the required geometry. Their small rounded cutting ends allow detailed contours, small radii, grooves and three-dimensional surfaces to be machined with high geometric precision.

The reinforced shank of the Maykestag Code 6345 provides additional support behind the miniature cutting section, helping create a stable tool configuration despite the small 0.60mm cutting diameter.

Features

  • Solid carbide construction: Provides the rigidity and wear resistance required for miniature precision milling.
  • Miniature 0.60mm diameter: Allows very small features, contours and detailed geometries to be machined.
  • 0.30mm radius: The ball nose profile provides a smooth rounded cutting geometry for contour and 3D machining.
  • Two flutes: Provides the specified Code 6345 cutting configuration.
  • Reinforced shank: The 3.00mm shank provides additional support behind the miniature cutting section.
  • 30° helix: Provides the specified spiral geometry for the cutter.
  • Short series: The compact tool design helps minimise unnecessary tool overhang.
  • Type N: Maykestag standard geometry designation for the product family.
  • DIN 6535-HA: Cylindrical shank configuration for suitable precision toolholding systems.

Recommended Applications

The Maykestag Code 6345 range is rated by Maykestag according to its suitability for different material groups. A higher rating indicates greater suitability for the application.

Steels below 400 N/mm²
Ideal
Steels below 850 N/mm²
Ideal
Steels below 1,100 N/mm²
Ideal
Steels below 1,300 N/mm²
Especially suitable
Steels above 45 HRC
Suitable
Stainless steels below 850 N/mm²
Especially suitable
Stainless steels above 850 N/mm²
Suitable
Cast iron and malleable cast iron
Ideal
Copper and brass
Suitable
Aluminium
Suitable

Reinforced Shank

The Maykestag Code 6345 uses a 3.00mm h6 reinforced shank behind its miniature cutting section. This provides additional support for the small cutting diameter and helps maintain a compact tool configuration for precision machining.

Miniature Ball Nose Geometry

The 0.60mm cutting diameter and 0.30mm radius are designed for miniature contouring and detailed three-dimensional machining. The short-series design keeps the cutting geometry close to the toolholder for precision applications.

Get the right cutting data  SpeedGuide Calculator

MaySpeedGuide: Maykestag recommends using the MaySpeedGuide to determine the appropriate cutting conditions for the tool, workpiece material and machining application.

Optimise miniature milling performance. Correct cutting speed, feed rate, tool engagement and machining conditions are especially important when working with miniature cutters. Always select cutting data appropriate to the workpiece material, machine, toolholding system and application.

Specifications

Description Spec
Product Maykestag Mini Ball Nose End Mill
Maykestag Code 6345
Product Type Solid carbide mini ball nose end mill
Diameter (d1) 0.60mm h10
Ball Radius R0.30mm
Shank Diameter (d2) 3.00mm h6
Overall Length (l1) 38mm
Cutting Length (l2) 2mm
Number of Flutes (Z) 2
Helix Angle 30°
Tool Type Type N
Series Short series
Shank Design Reinforced shank
Shank Standard DIN 6535-HA
Coating Uncoated / blank
Material Solid carbide (VHM)
Coolant Supply No internal coolant
Manufacturer Part Number 0634500060100
Vermont Sales SKU MAY6345000601
UPC / EAN 9002740934981

Scope of Delivery

  • 1 x Maykestag solid carbide mini ball nose end mill 0.60mm R0.30 Z2
