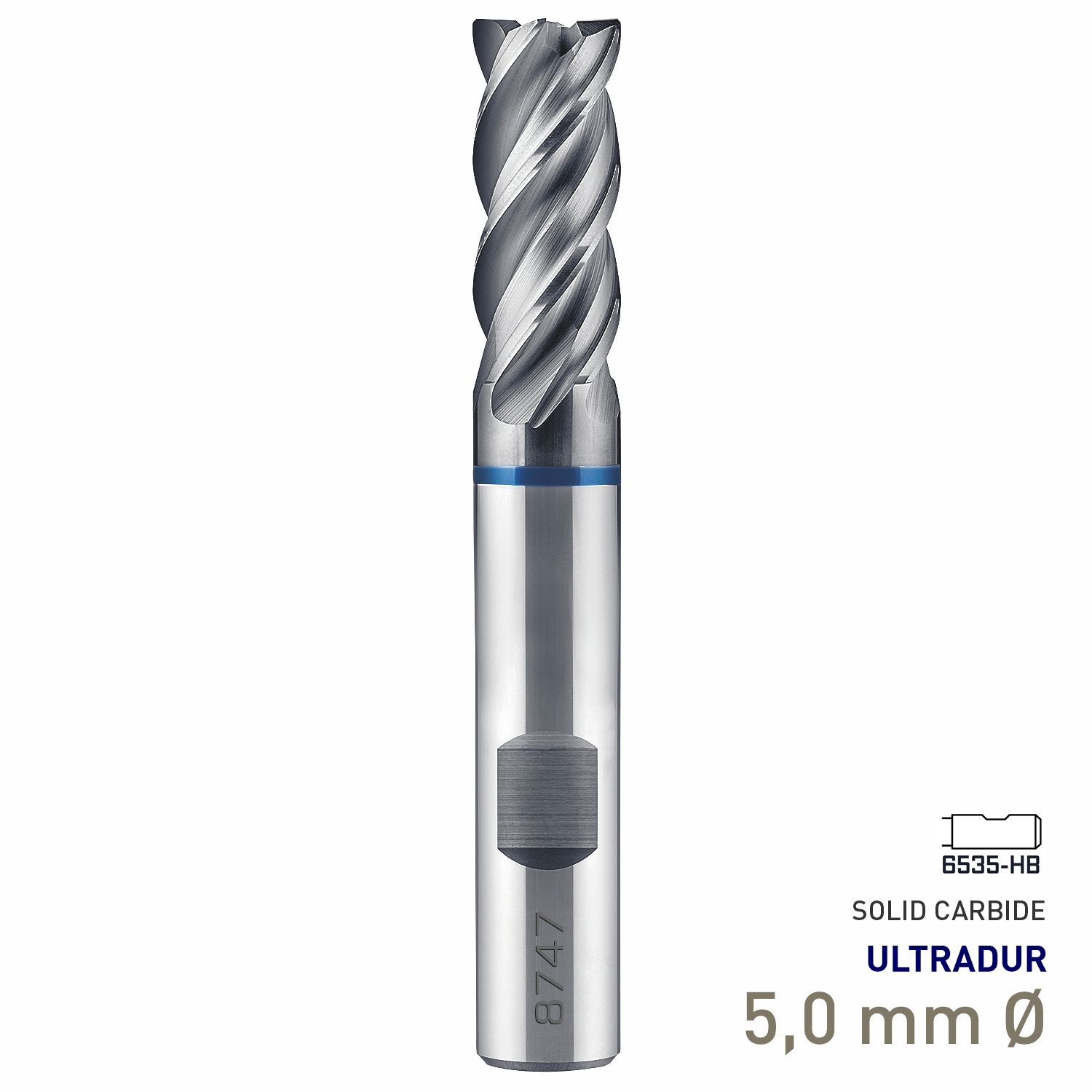

MAYKESTAG Speedcut 4.0-Inox ULTRADUR HPC Solid Carbide End Mill 5mm Long Series 4 Flute

Maykestag Speedcut 4.0-Inox ULTRADUR HPC Solid Carbide End Mill 5mm

High-performance 5mm long-series solid carbide end mill from the Maykestag Speedcut 4.0-Inox range, featuring four flutes, unequal 39°-42° spiral angles, a 0.25mm 45° corner chamfer, ULTRADUR coating and a DIN 6535-HB shank. Designed especially for stable, productive milling in stainless steel and other suitable engineering materials.

The Maykestag Code 8747 Speedcut 4.0-Inox is an HPC solid carbide end mill developed for demanding CNC milling applications where process stability, surface quality and dependable cutting performance are important. This 5mm version uses four cutting flutes together with unequal spiral angles of 39°-42°. Varying the spiral geometry helps interrupt repetitive cutting forces, supporting smoother running and helping reduce vibration during demanding milling operations.

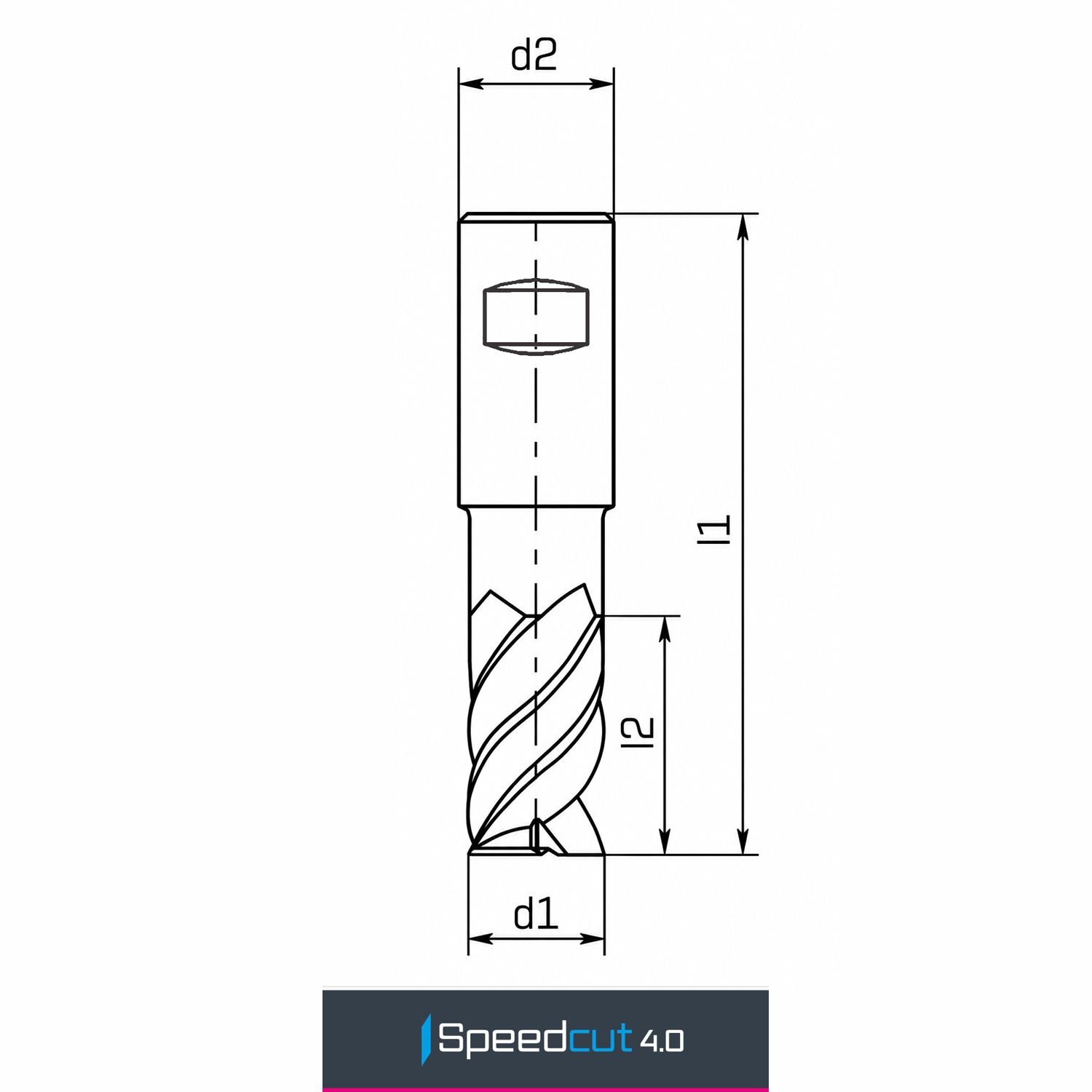

The cutter is manufactured from VHM solid carbide and protected with Maykestag&s ULTRADUR coating. Its long-series DIN 6527L geometry provides additional reach, while the precision DIN 6535-HB shank incorporates a driving flat for secure clamping in compatible tool-holding systems. The 5mm cutter has a 6mm shank, 57mm overall length, 13mm cutting length and four cutting edges.

Product highlights

• Speedcut 4.0-Inox: High-performance milling geometry developed with a strong focus on stainless-steel machining.
• ULTRADUR coating: Maykestag high-performance coating specified for the Code 8747 series.
• VHM solid carbide: Rigid carbide construction provides excellent dimensional stability and wear resistance for professional CNC machining.
• Four-flute design: Four cutting edges provide productive material removal and a controlled cutting action.
• Unequal spiral angles: 39°-42° spiral geometry helps disrupt repetitive cutting forces and supports smoother, lower-vibration machining.
• Type N geometry: Normal cutting geometry suited to the material groups specified by Maykestag for this cutter range.
• Long series: DIN 6527L construction provides additional working reach compared with shorter milling cutters.
• 45° corner chamfer: The 5mm cutter has a precision 0.25mm corner chamfer.
• DIN 6535-HB shank: Precision cylindrical shank with driving flat for secure holding in compatible systems.
• Precision tolerances: Cutting diameter tolerance h10 and shank diameter tolerance h6.

Designed for High-Performance Stainless-Steel Milling

Stainless steel can be demanding to machine because stable cutting, controlled heat generation and consistent chip formation all matter. The Speedcut 4.0-Inox geometry is designed around these requirements. Its unequal spiral angles help reduce the tendency for repetitive cutting forces to develop, while the four-flute configuration provides a balanced and productive cutting action. Used with the correct cutting speed, feed, tool holding and machining strategy, the cutter is designed to provide a smooth, controlled machining process with dependable surface quality.
