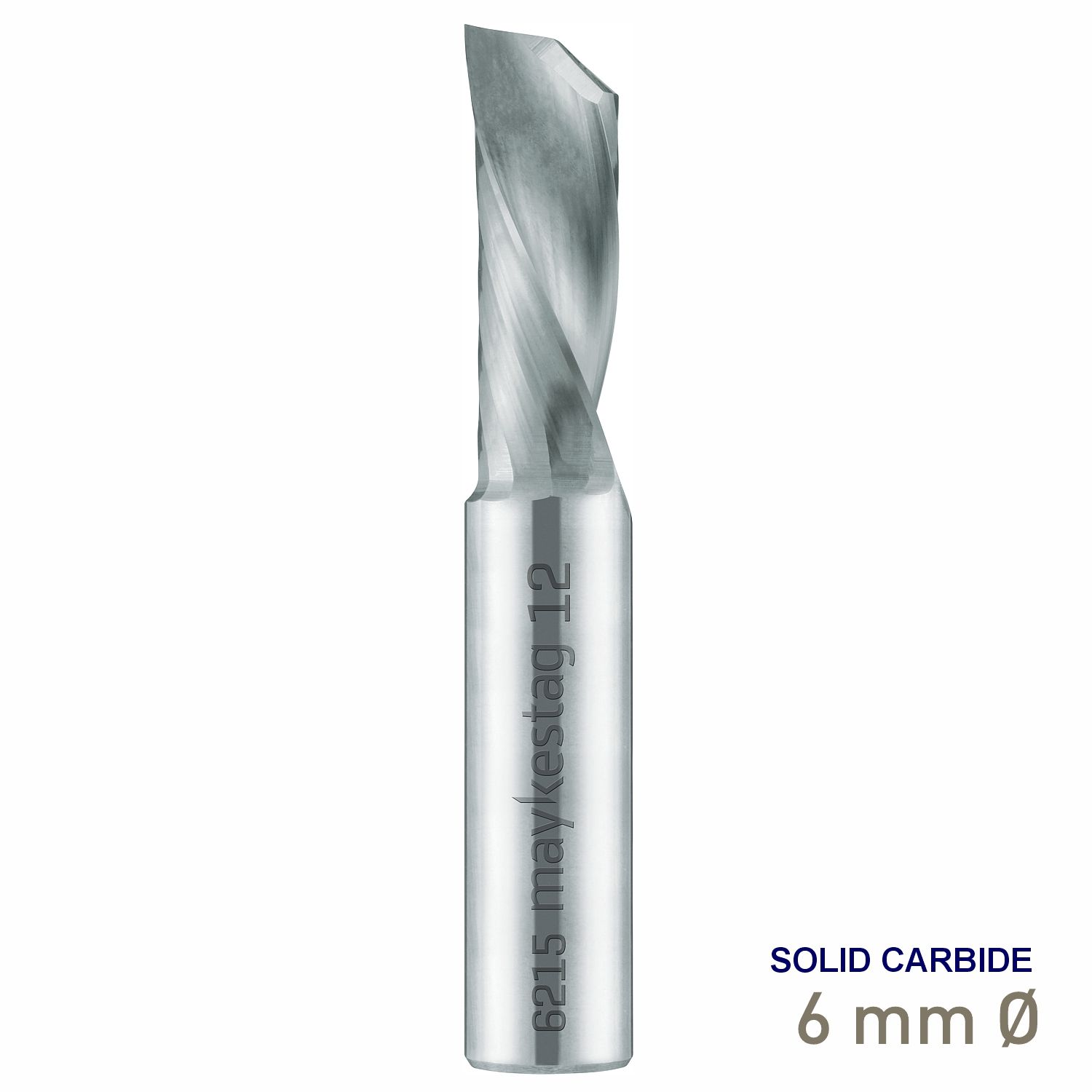

Name: MAYKESTAG Solid Carbide 1-Flute End Mill Aluminium & Plastics 6.00mm Type W Left-Hand Spiral
Brand: MAYKESTAG
SKU: MAY62150060
Price: 838.86 ZAR
Availability: InStock

MAYKESTAG Solid Carbide 1-Flute End Mill Aluminium & Plastics 6.00mm Type W Left-Hand Spiral

New

MAYKESTAG Solid Carbide 1-Flute End Mill Aluminium & Plastics 6.00mm Type W Left-Hand Spiral

Stock: 1 - 5 Days
Cat No: MAY62150060 21395
SKU: MAY62150060

MAYKESTAG

Product Views: 2

Based on 0 reviews. - Write a review

Don't snooze, this offer ends in:

Day

Hour

Min

Sec

R 838.86

R 1,023.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Maykestag Solid Carbide 1-Flute End Mill Aluminium & Plastics 6.00mm Type W Left-Hand Spiral

Specialised 1-flute milling for aluminium and plastics. The Maykestag Code 6215 is a solid carbide single-flute end mill designed specifically for machining aluminium and plastics. This 6.00mm version features a right-hand cutting direction with a 30° left-hand spiral and Type W geometry for efficient high-speed machining.

The Maykestag Code 6215 6.00mm solid carbide 1-flute end mill provides a generous flute space for efficient chip evacuation when machining aluminium and plastics. Its single cutting edge, 30° left-hand spiral and 90° head form provide a specialised geometry for productive contour milling and profiling applications.

With a 6.00mm cutting diameter, 6.00mm h6 shank, 50mm overall length and 18mm cutting length, this cutter provides a compact and rigid configuration for CNC machining. The uncoated solid carbide construction is complemented by a DIN 6535-HA cylindrical shank.

What is a 1-flute end mill?

A 1-flute end mill has a single cutting edge and provides a large flute space relative to its diameter. This allows chips to move efficiently away from the cutting zone and makes single-flute cutters particularly useful when machining aluminium and plastics at high spindle speeds.

The 30° left-hand spiral of the Code 6215 is combined with right-hand cutting and Type W geometry to provide a specialised cutting solution for aluminium and plastics.

Product Highlights

6.00mm cutting diameter for precision milling applications
1-flute solid carbide design with generous chip space
30° left-hand spiral for the specified cutting geometry
Right-hand cutting direction
Type W geometry for aluminium and plastics
Uncoated solid carbide construction
DIN 6535-HA cylindrical shank
6.00mm h6 shank diameter
50mm overall length
18mm cutting length
90° head form
HSC high-speed machining geometry

Why use a single-flute cutter for aluminium and plastics?

Single-flute end mills provide a large chip space, allowing chips to leave the cutting zone efficiently. This is especially valuable when machining aluminium and plastics at high spindle speeds, where adequate chip evacuation is important for stable cutting performance.

The Maykestag Code 6215 combines its single-flute configuration with Type W geometry and a 30° left-hand spiral for this specialised application.

Features

Solid carbide construction: Provides the rigidity and wear resistance required for precision CNC milling applications.
Single flute: The one-flute configuration creates a large flute space for efficient chip evacuation.
30° left-hand spiral: The left-hand spiral is an integral part of the Code 6215 cutting geometry.
Right-hand cutting: The cutter is designed for right-hand cutting despite its left-hand spiral.
Type W geometry: Specialised cutting geometry for machining aluminium and plastics.
Uncoated: The cutter uses a blank solid carbide cutting surface without an additional coating.
90° head form: Provides the specified end geometry for contour and profile milling.
DIN 6535-HA shank: Cylindrical shank configuration for suitable precision toolholding systems.

Recommended Applications

The Maykestag Code 6215 range is rated by Maykestag according to its suitability for different material groups. A higher rating indicates greater suitability for the application.

Aluminium

Ideal

Plastics

Especially suitable

Tool Identification

The Maykestag Code 6215 is a specialised 1-flute solid carbide milling cutter for aluminium and plastics. It is identified as Type W and uses a 30° left-hand spiral with right-hand cutting.

The cutter has a DIN 6535-HA cylindrical shank and is supplied in an uncoated solid carbide configuration.

Optimised for Aluminium and Plastics

The single-flute geometry provides generous chip space, making the cutter particularly useful where efficient chip evacuation is important. Maykestag rates the Code 6215 as ideal for aluminium and especially suitable for plastics.

The Code 6215 geometry is suitable for contour machining applications where high-speed cutting and efficient chip evacuation are required.

Get the right cutting data SpeedGuide Calculator

MaySpeedGuide: Maykestag recommends using the MaySpeedGuide to determine the appropriate cutting conditions for the tool, workpiece material and machining application.

Optimise aluminium and plastic milling performance. Correct spindle speed, feed rate, chip load and machining conditions help maximise tool life, surface quality and chip evacuation. Always select cutting data appropriate to the workpiece material, machine, toolholding system and application.

Specifications

Description	Spec
Product	Maykestag Solid Carbide 1-Flute End Mill
Maykestag Code	6215
Product Type	Solid carbide 1-flute end mill
Application	Aluminium and plastics
Diameter (d1)	6.00mm h10
Shank Diameter (d2)	6.00mm h6
Overall Length (l1)	50mm
Cutting Length (l2)	18mm
Number of Flutes (Z)	1
Helix Angle	30° left-hand spiral
Cutting Direction	Right-hand cutting
Tool Type	Type W
Standard	WN / Werksnorm
Shank Standard	DIN 6535-HA
Coating	Uncoated / blank
Head Form	90°
Rake Angle	20°
Coolant Supply	No internal coolant
Machining Form	Contour
Machining Application	HSC
Material	Solid carbide (VHM)
Manufacturer Part Number	0621500600100
Vermont Sales SKU	MAY62150060
UPC / EAN	9002740934646

Scope of Delivery

1 x Maykestag solid carbide 1-flute end mill 6.00mm Type W, 30° left-hand spiral
