Maykestag Speedcut 4.0 Universal HPC Solid Carbide End Mill 2mm

Professional 2mm long-series HPC end mill from the Maykestag Speedcut 4.0 Universal range, manufactured from VHM solid carbide and featuring 3 cutting flutes, Type N geometry, different 35°–38° spiral angles, a TWINDUR coating and a precision DIN 6535-HA shank.

The Maykestag Code 8217 Speedcut 4.0 Universal range is designed for high-performance milling across a broad selection of engineering materials. This 2mm cutter combines solid-carbide construction with a long-series DIN 6527 L design, three cutting flutes and different spiral angles of 35°–38°. The cutter is finished with Maykestag&s TWINDUR coating and is manufactured with closely controlled cutting and shank tolerances for professional CNC and precision milling applications.

What is an HPC end mill? HPC stands for High Performance Cutting. An HPC end mill is designed for productive machining where cutting geometry, tool material, flute configuration and coating work together to provide controlled cutting performance at appropriately selected speeds and feed rates. The Speedcut 4.0 Universal Code 8217 combines solid-carbide construction with a multi-flute design and different spiral angles for professional milling applications.

Product highlights

Speedcut 4.0 Universal: Part of Maykestag&s professional HPC milling range for versatile machining applications.
VHM solid-carbide construction: Provides the rigidity, dimensional stability and cutting-edge strength required for precision milling.
2mm cutting diameter: Precision-ground cutting diameter with an h10 tolerance.
3-flute geometry: The 2mm version of the Code 8217 range is manufactured with three cutting flutes.
Different spiral angles: 35°–38° spiral-angle geometry as specified by Maykestag for the Code 8217 series.
Type N geometry: General-purpose cutter geometry designed for the universal machining characteristics of this range.
Long-series construction: DIN 6527 L configuration provides extended tool reach compared with short-series cutters.
TWINDUR coating: Maykestag&s specified coating for the Code 8217 Speedcut 4.0 Universal range.
45° corner chamfer: This 2mm cutter has a 0.06mm 45° cutting-edge chamfer according to the catalogue dimensional data.
DIN 6535-HA shank: Precision cylindrical shank manufactured to the specified DIN shank form.
Precision tolerances: Cutting diameter d1 is manufactured to h10 and shank diameter d2 to h6.

Why Choose Maykestag?

Maykestag develops professional cutting tools with carefully specified cutting geometry, dimensional tolerances, tool materials and application data. These details are especially important in CNC milling, where cutter rigidity, dimensional accuracy, cutting-edge consistency and correct cutting conditions all contribute to repeatable machining results.

The Code 8217 Speedcut 4.0 Universal series combines VHM solid carbide, TWINDUR coating, Type N geometry and different spiral angles in a long-series HPC end mill. Maykestag rates the range particularly highly for steels up to 1,100 N/mm² and for cast iron, while also providing suitability ratings for harder steels, stainless steels, copper, brass and aluminium.

Designed for Universal HPC Milling

The Code 8217 range is specified with 3 to 4 flutes depending on cutter diameter. The 2mm version uses three flutes, while larger sizes in the range use four flutes. Its 35°–38° different spiral-angle geometry forms part of the cutter&s Speedcut 4.0 Universal HPC design. Combined with the rigid solid-carbide body, TWINDUR coating and precision DIN 6535-HA shank, the cutter is intended for accurate professional milling when used with suitable machine rigidity, tool holding and cutting data.

Features

Speedcut 4.0 Universal HPC end mill for professional milling applications.
VHM solid carbide construction for high rigidity and precision machining.
DIN 6527 L long-series design with a 40mm overall length.
2.00mm cutting diameter manufactured to h10 tolerance.
3 cutting flutes on this 2mm version.
Type N geometry for universal milling applications.
35°–38° different spiral angles as specified for the Code 8217 range.
0.06mm x 45° corner chamfer on this 2mm cutter.
TWINDUR coating as specified by Maykestag.
DIN 6535-HA cylindrical shank with a 4.00mm shank diameter.
h6 shank tolerance for precision tool holding.
No internal coolant channels in the Code 8217 range.

Recommended Applications

The Maykestag Code 8217 range is rated by Maykestag according to its suitability for different material groups. A higher rating indicates greater suitability for the application.

Steels below 400 N/mm²

4/4 Ideal

Steels below 850 N/mm²

4/4 Ideal

Steels below 1,100 N/mm²

4/4 Ideal

Steels below 1,300 N/mm²

3/4 Especially suitable

Steels above 45 HRC - catalogue limit below 50 HRC

2/4 Suitable

Stainless steels below 850 N/mm²

3/4 Especially suitable

Stainless steels above 850 N/mm²

2/4 Suitable

Cast iron and malleable cast iron

4/4 Ideal

Copper and brass

2/4 Suitable

Aluminium

2/4 Suitable

Catalogue note: Maykestag does not show an application suitability rating for nickel, titanium and titanium alloys, or plastics for the Code 8217 range.

Get the Right Cutting Data SpeedGuide Calculator

MaySpeedGuide: Maykestag recommends using the MaySpeedGuide to determine the appropriate cutting speed, feed rate and machining conditions for the tool, workpiece material and milling operation.

Precision tool holding matters. With a 2mm solid-carbide cutter, good machine rigidity, low tool run-out and secure tool holding are particularly important. Use the correct cutting data for the workpiece material and avoid applying cutting conditions intended for larger-diameter cutters.

Why the Correct Cutting Data Matters

Small-diameter solid-carbide end mills can operate at considerably different spindle speeds and feed rates from larger cutters. Cutting diameter, number of flutes, workpiece material, machining operation and engagement all influence the required settings. Using Maykestag&s SpeedGuide data helps ensure that the cutter is operated within suitable conditions rather than relying on a generic speed or feed value.

Specifications

Description	Spec
Brand:	Maykestag
Product Description:	Speedcut 4.0 Universal HPC Solid Carbide End Mill 2mm
Cat No.:	MAY82170020
Manufacturer Code:	0821700200100
Series Code:	8217
Product Range:	Speedcut 4.0 Universal
Standard:	DIN 6527 L
Type:	N
Length Series:	Long
Tool Material:	VHM - Solid Carbide
Coating:	TWINDUR
No. of Flutes:	3
Series Flute Range:	3 - 4
Spiral Angle:	35° - 38°
Spiral Geometry:	Different spiral angles
Head Type:	45° corner chamfer
Corner Chamfer:	0.06 mm x 45°
Shank Type:	DIN 6535-HA
Coolant Channels:	No
Cutting Diameter Tolerance:	h10

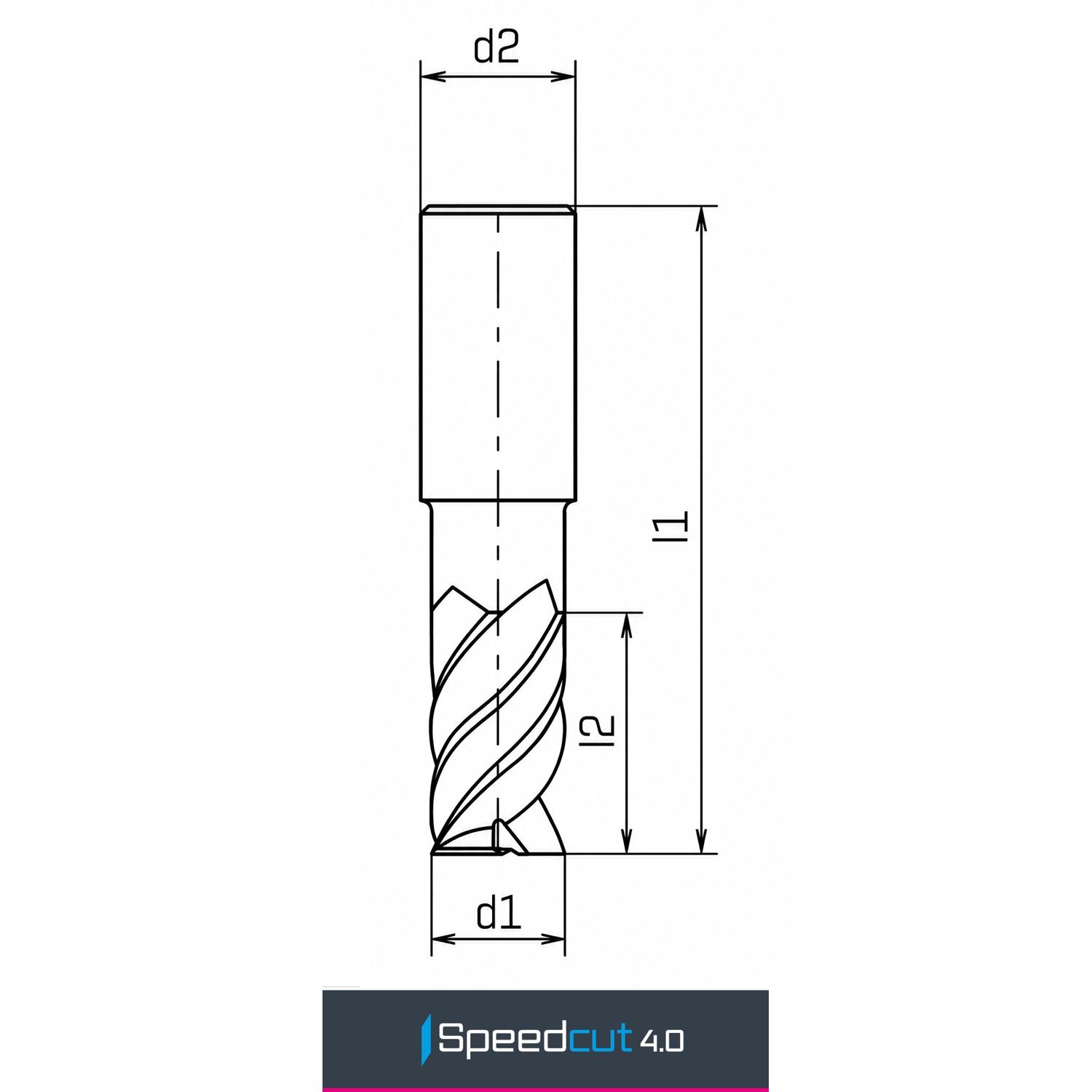

Cutting Diameter (d1):	2.00 mm
Shank Diameter (d2):	4.00 mm
Shank Diameter Tolerance:	h6
Overall Length (l1):	40 mm
Cutting Length (l2):	5 mm

Scope of delivery

1 x Maykestag Speedcut 4.0 Universal HPC Solid Carbide End Mill 2mm
