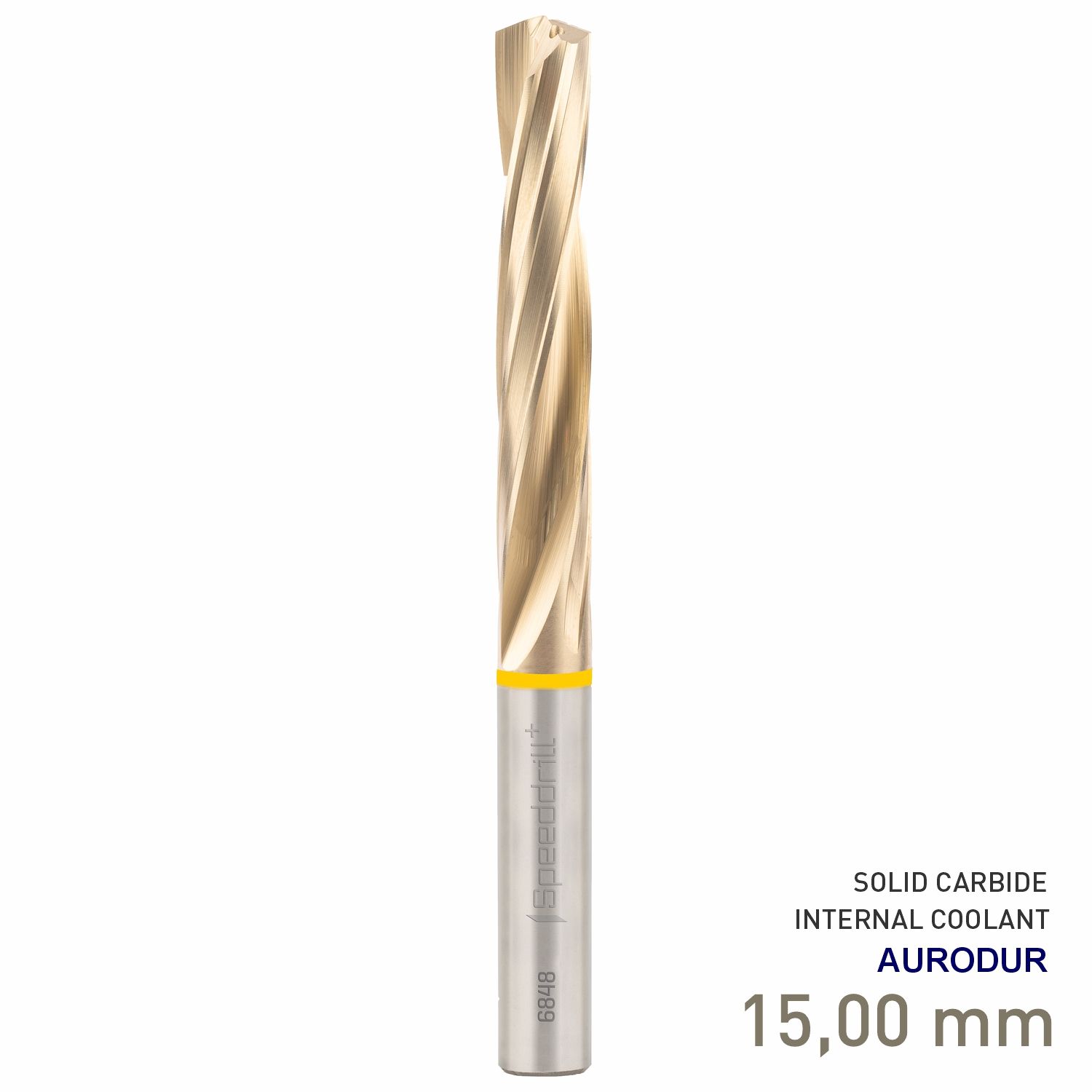

MAYKESTAG Speeddrill+ Aluminium 15.00mm DIN 6537L 5xD Internal Coolant

Maykestag Speeddrill+ Aluminium 15.00mm DIN 6537L 5xD Internal Coolant

Professional 15.00mm Maykestag Speeddrill+ Aluminium solid carbide drill manufactured in Type W geometry with a 135° point angle, AURODUR coating, internal coolant supply and a long 5xD design. Manufactured to DIN 6537L with a DIN 6535-HA cylindrical shank, it is specifically designed for high-performance drilling in aluminium and is also ideally suited to copper and brass.

The Maykestag Code 6848 Speeddrill+ Aluminium is a high-performance solid carbide drill developed specifically for aluminium machining. The drill incorporates internal coolant channels to deliver coolant directly through the tool to the cutting zone, supporting efficient chip evacuation and temperature control during high-speed drilling.

The 15.00mm version has a 16mm h6 shank, 133mm overall length and 83mm flute length. Its 135° point angle, specialised Type W geometry and AURODUR coating are designed for efficient aluminium drilling, while six guide chamfers help provide high alignment accuracy and drill stability at high cutting speeds and feeds.

Product highlights

• Maykestag Code 6848: High-performance Speeddrill+ Aluminium solid carbide drill for demanding non-ferrous metal machining.
• 15.00mm drilling diameter: Professional large-diameter configuration for precision drilling applications.
• 5xD drilling depth: Long-series design for drilling holes to depths of approximately five times the drill diameter.
• Type W geometry: Specialised geometry developed for aluminium machining and non-ferrous materials.
• 135° point angle: Application-specific point geometry designed for efficient aluminium drilling.
• Internal coolant supply: Coolant is delivered directly through the drill to support cooling and chip evacuation.
• Six guide chamfers: Provide high alignment accuracy and stabilisation of the drill during high-speed drilling.
• AURODUR coating: Special coating with a smooth surface designed to help prevent built-up edges during aluminium machining.
• Solid carbide construction: Provides the rigidity and cutting performance required for high-performance drilling.
• DIN 6537L: Manufactured to the specified standard for long-series solid carbide drills.
• DIN 6535-HA shank: Cylindrical shank configuration for compatible precision toolholding.
• 2 cutting edges: Two-flute geometry for efficient drilling and chip evacuation.
• Aluminium specialist: Rated by Maykestag as ideal for aluminium machining.
• Copper and brass: Also rated by Maykestag as ideal for copper and brass.

Designed for High-Performance Aluminium Drilling

Aluminium can generate built-up edges when drilling conditions and tool geometry are not properly matched to the material. The Speeddrill+ Aluminium&s specialised coating and application-specific geometry are designed to reduce this tendency while supporting clean cutting and efficient chip evacuation.

The internal coolant channels are particularly valuable during 5xD drilling because coolant is delivered directly to the cutting zone while helping carry chips out of the hole. The six guide chamfers provide additional drill guidance and stabilisation, helping maintain alignment accuracy during high-speed and high-feed drilling operations.
