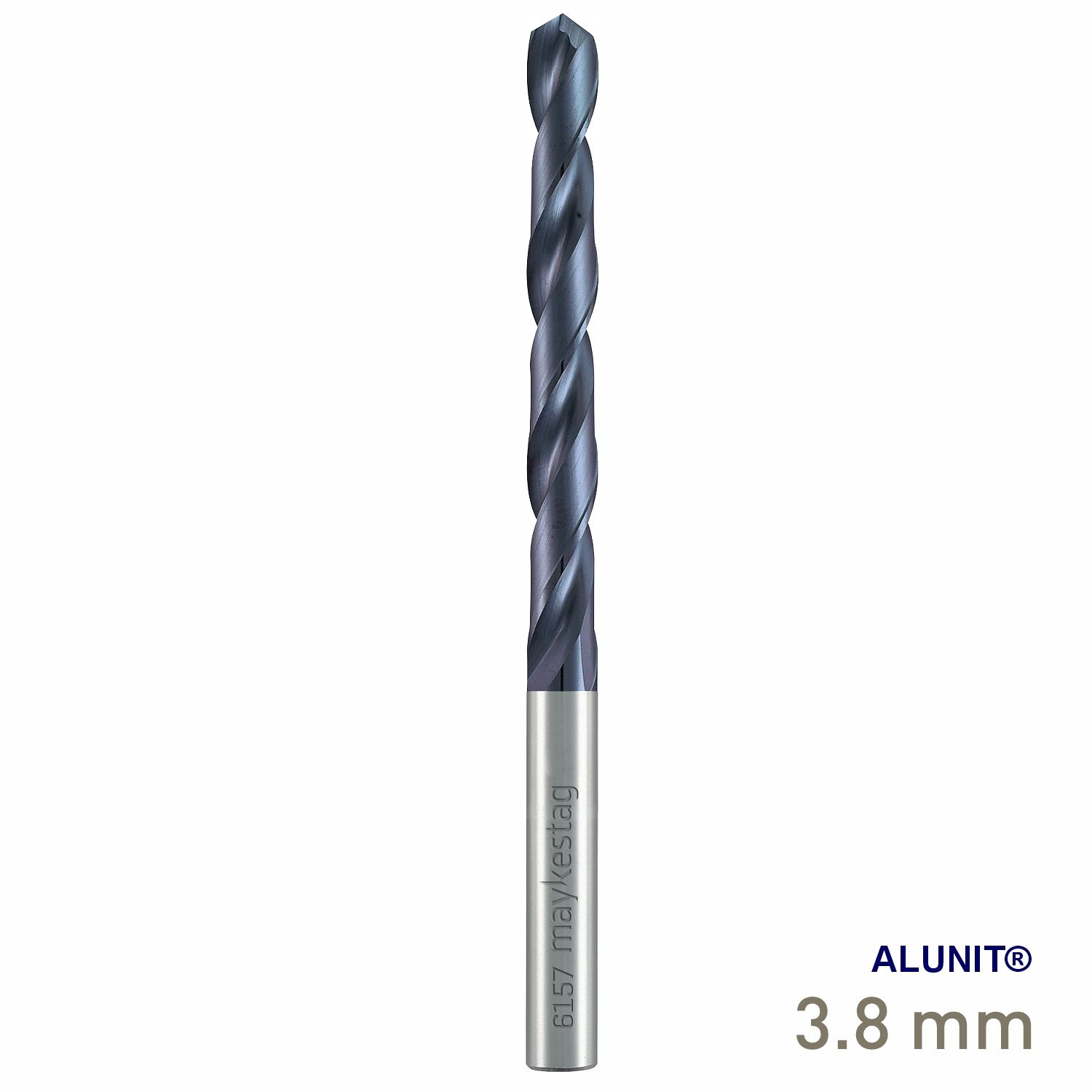

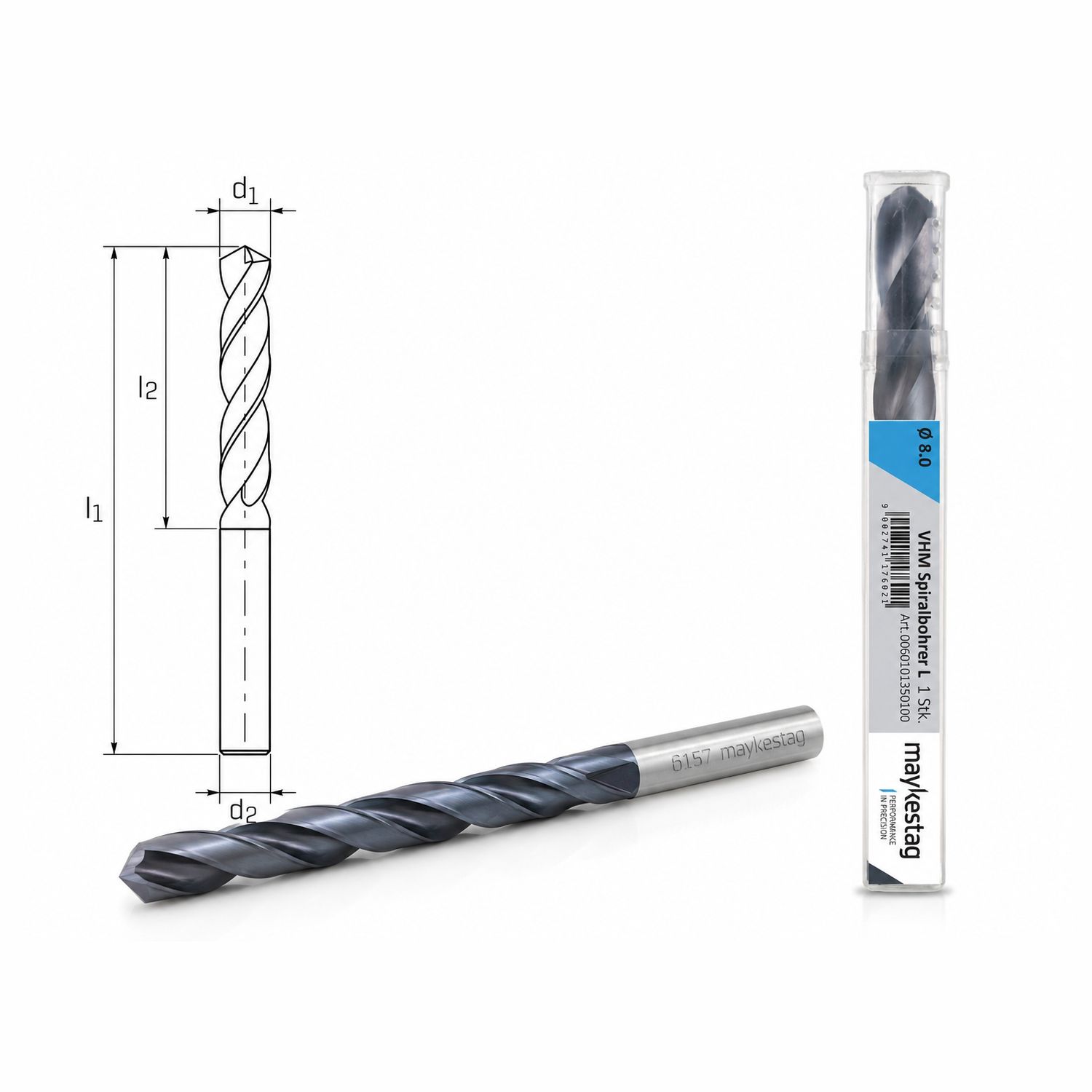

Name: MAYKESTAG Solid Carbide Drill DIN 338 N ALUNIT® 3.80mm
Brand: MAYKESTAG
SKU: MAY61570038
Price: 898.72 ZAR
Availability: OutOfStock

MAYKESTAG Solid Carbide Drill DIN 338 N ALUNIT® 3.80mm

Sold Out

MAYKESTAG Solid Carbide Drill DIN 338 N ALUNIT® 3.80mm

Stock: Sold Out
Cat No: MAY61570038 11915
SKU: MAY61570038
UPC: 9002740774709

MAYKESTAG

Product Views: 1

Based on 0 reviews. - Write a review

Don't snooze, this offer ends in:

Day

Hour

Min

Sec

R 898.72

R 1,096.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Maykestag Solid Carbide Drill DIN 338 N ALUNIT® 3.80mm

High-performance 3.80mm solid carbide drill with ALUNIT® coating, manufactured to DIN 338 Type N with a 118° point angle and 5×D drilling depth for precision drilling in demanding materials.

The Maykestag Code 6157 is a solid carbide drill with ALUNIT® coating, designed for professional drilling applications. Manufactured to DIN 338 Type N, the drill features a 118° point angle, two cutting edges and a drilling depth capability of up to 5×D. The 3.80mm drill diameter is matched by a 3.80mm h6 shank for precise toolholding.

The ALUNIT® coating provides a hard, wear-resistant cutting surface designed to support reliable performance across a broad range of engineering materials. The DIN 338 Type N geometry provides a versatile configuration for precision drilling applications.

What is a solid carbide drill? A solid carbide drill is manufactured entirely from carbide rather than having a carbide tip brazed onto a steel body. The high rigidity and wear resistance of solid carbide make these drills particularly suitable for precision machining and demanding drilling applications.

Product Highlights

Solid carbide construction for high rigidity and wear resistance
ALUNIT® coating for enhanced wear resistance and cutting performance
3.80mm drill diameter for precision hole production
DIN 338 Type N geometry for versatile drilling applications
118° point angle for reliable centring and cutting performance
5×D drilling depth capability
2 cutting edges for efficient material removal
3.80mm nominal h6 shank diameter

Why choose Maykestag solid carbide drills? Maykestag solid carbide drills combine rigid carbide construction, precision geometry and ALUNIT® coating technology to provide reliable drilling performance across a broad range of engineering materials. The Code 6157 series is designed for accurate, repeatable hole production in professional machining environments.

Features

Solid carbide construction
ALUNIT® coating
3.80mm drill diameter
DIN 338 Type N
118° point angle
5×D drilling depth
2 cutting edges
3.80mm nominal shank diameter
h6 shank tolerance
75mm overall length
43mm flute length

Recommended Applications

The Maykestag Code 6157 range is rated by Maykestag according to its suitability for different material groups. A higher rating indicates greater suitability for the application.

Steels below 400 N/mm²

4/4 Ideal

Steels below 850 N/mm²

4/4 Ideal

Steels below 1,100 N/mm²

3/4 Especially suitable

Steels below 1,300 N/mm²

2/4 Suitable

Steels above 45 HRC

Not rated

Stainless steels below 850 N/mm²

3/4 Especially suitable

Stainless steels above 850 N/mm²

2/4 Suitable

Cast iron and malleable cast iron

4/4 Ideal

Titanium and titanium alloys

2/4 Suitable

Copper and brass

2/4 Suitable

Aluminium

3/4 Especially suitable

Plastics

3/4 Especially suitable

Get the right cutting data SpeedGuide Calculator

MaySpeedGuide: Maykestag recommends using the MaySpeedGuide to determine the appropriate cutting conditions for the tool, workpiece material and machining application.

Optimise drilling performance. Correct cutting speed, feed rate and machining conditions help maximise tool life, hole quality and cutting performance. Always select cutting speed, feed rate and machining conditions appropriate to the workpiece material, machine, toolholding system and application.

Specifications

Description	Spec
Product Code	6157
Manufacturer Article Number	0615700380100
UPC	9002740774709
Drill Diameter	3.80mm
Shank Diameter	3.80mm h6
Overall Length	75mm
Flute Length	43mm
Point Angle	118°
Drilling Depth	5×D
Tool Type	Solid Carbide Drill
Standard	DIN 338
Geometry	Type N
Coating	ALUNIT®
Cutting Edges	2

Contains

1 x Maykestag Solid Carbide Drill DIN 338 N ALUNIT® 3.80mm

Tags: Maykestag , Drill , Solid Carbide Drill , ALUNIT Drill , 3.80mm Drill , DIN 338 , Type N , 118 Degree Drill , 5xD Drill , Code 6157 , Carbide Drill
