Name: MAYKESTAG solid carbide drill DIN 338 N ALUNIT® 1.10mm
Brand: MAYKESTAG
SKU: MAY61570011
Price: 464.94 ZAR
Availability: OutOfStock

MAYKESTAG solid carbide drill DIN 338 N ALUNIT® 1.10mm

Sold Out

MAYKESTAG solid carbide drill DIN 338 N ALUNIT® 1.10mm

Stock: Sold Out
Cat No: MAY61570011 11888
SKU: MAY61570011
UPC: 9002740774433

MAYKESTAG

Product Views: 1

Based on 0 reviews. - Write a review

Don't snooze, this offer ends in:

Day

Hour

Min

Sec

R 464.94

R 567.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

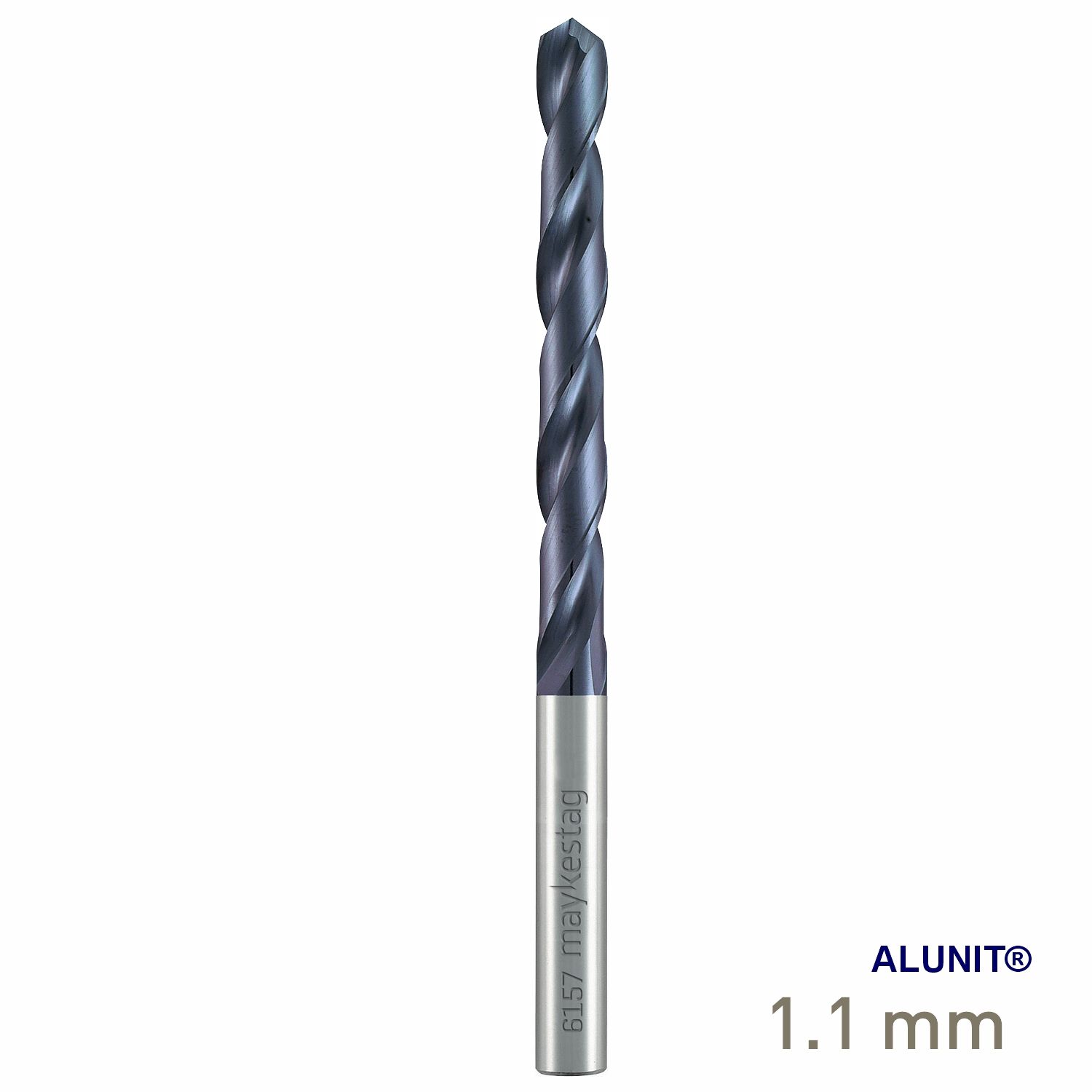

Maykestag solid carbide drill DIN 338 N ALUNIT® 1.10mm

High-performance 1.10mm solid carbide drill with ALUNIT® coating, manufactured to DIN 338 Type N with a 118° point angle and 5×D drilling depth for precision drilling in demanding materials.

The Maykestag Code 6157 is a precision solid carbide drill with ALUNIT® coating, designed for professional drilling applications. Manufactured to DIN 338 Type N, the drill features a 118° point angle, two cutting edges and a drilling depth capability of up to 5×D. The 1.10mm drill diameter is matched by a 1.10mm h6 shank, providing a compact configuration for precision toolholding.

The ALUNIT® coated design provides a durable cutting surface for reliable performance in a broad range of engineering materials. Its compact DIN 338 Type N geometry makes it suitable for precision drilling where accurate hole production and consistent cutting performance are important.

What is a solid carbide drill? A solid carbide drill is manufactured entirely from carbide rather than having a carbide tip brazed onto a steel body. The high rigidity and wear resistance of solid carbide make these drills particularly suitable for precision machining and higher-performance drilling applications.

Product highlights

Solid carbide construction: High rigidity and wear resistance for precision drilling applications.
ALUNIT® coating: Provides a durable coated cutting surface for demanding drilling applications.
1.10mm drilling diameter: Precision small-diameter drilling for accurate hole production.
DIN 338 Type N: Standard stub-drill geometry for general-purpose drilling applications.
118° point angle: Provides conventional drill-point geometry for controlled centring and cutting.
5×D drilling depth: Designed for drilling depths of up to approximately five times the drill diameter.
2 cutting edges: Two-flute cutting geometry for efficient chip formation and evacuation.
1.10mm h6 shank: Precision nominal shank matching the drill diameter.

Why choose Maykestag?

Maykestag precision cutting tools combine carefully controlled geometries with specified tool materials and coatings to provide reliable machining performance. Solid carbide construction provides the rigidity required for accurate small-diameter drilling, while ALUNIT® coating provides a durable cutting surface for professional machining applications.

The Code 6157 series combines solid carbide construction, ALUNIT® coating, DIN 338 Type N geometry and a 118° point angle for professional drilling applications across a range of engineering materials.

Features

Solid carbide construction
ALUNIT® coating
1.10mm drill diameter
DIN 338 Type N
118° point angle
5×D drilling depth
2 cutting edges
1.10mm nominal shank diameter
h6 shank tolerance
36mm overall length
14mm flute length

Recommended applications

The Maykestag Code 6157 ALUNIT® range is rated by Maykestag according to its suitability for different material groups. A higher rating indicates greater suitability for the application.

Steels below 400 N/mm²

4/4 Ideal

Steels below 850 N/mm²

4/4 Ideal

Steels below 1,100 N/mm²

3/4 Especially suitable

Steels below 1,300 N/mm²

2/4 Suitable

Steels above 45 HRC

Not rated

Stainless steels below 850 N/mm²

3/4 Especially suitable

Stainless steels above 850 N/mm²

2/4 Suitable

Cast iron and malleable cast iron

4/4 Ideal

Copper and brass

2/4 Suitable

Aluminium

3/4 Especially suitable

Plastics

3/4 Especially suitable

Get the right cutting data SpeedGuide Calculator

MaySpeedGuide: Maykestag recommends using the MaySpeedGuide to determine the appropriate cutting conditions for the tool, workpiece material and machining application.

Optimise drilling performance. Correct cutting speed, feed rate and machining conditions help maximise tool life, hole quality and cutting performance. Always select cutting speed, feed rate and machining conditions appropriate to the workpiece material, machine, toolholding system and application.

Specifications

Description	Spec
Brand:	Maykestag
Product Description:	Solid Carbide Drill DIN 338 N ALUNIT® 1.10mm
Cat No.:	MAY61570011
Manufacturer Code:	0615700110100
Barcode:	9002740774433
Series Code:	6157
Tool Type:	Solid Carbide Drill
Tool Material:	Solid Carbide
Standard:	DIN 338
Type:	N
Coating:	ALUNIT®
Point Angle:	118°
Drilling Depth:	5×D
No. of Cutting Edges:	2

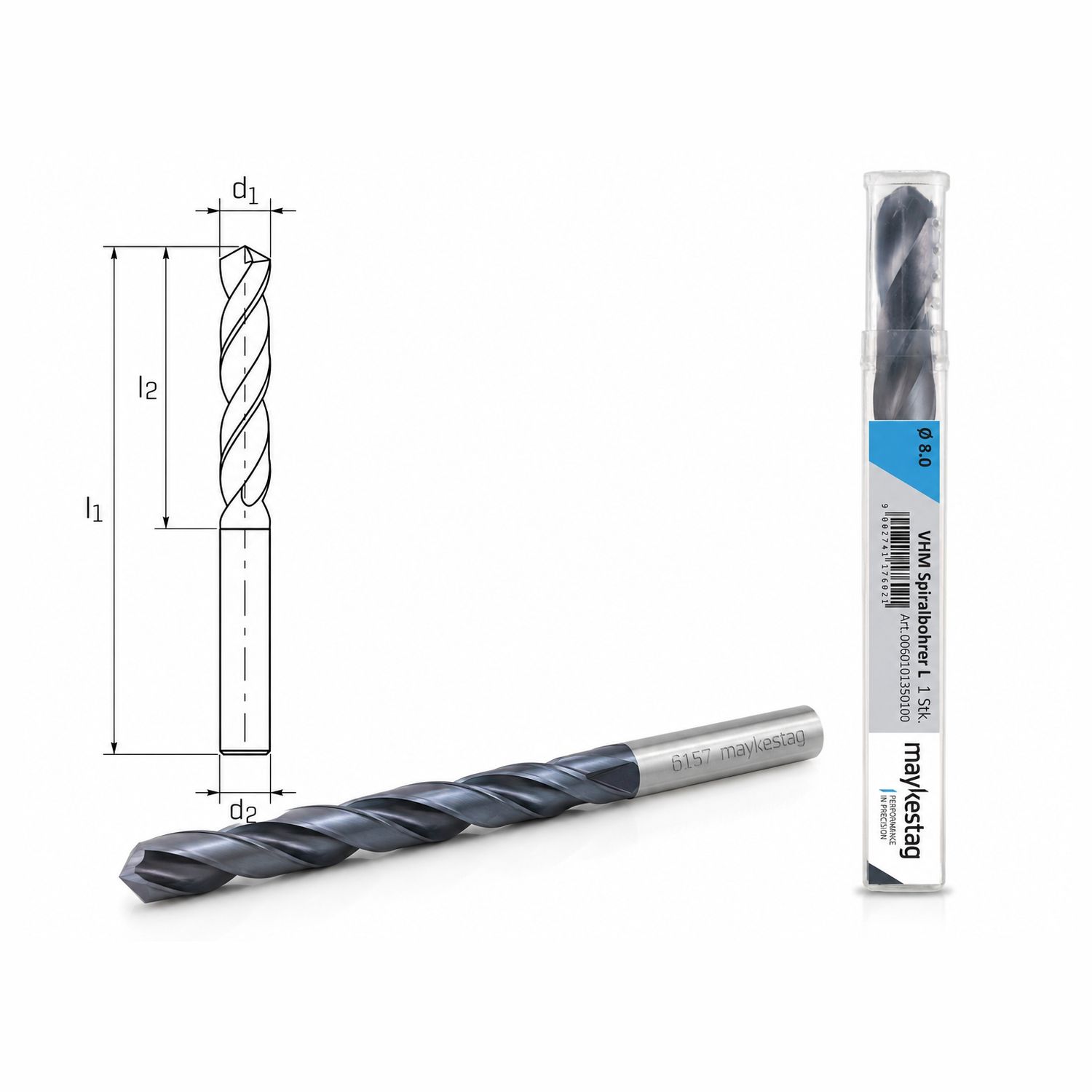

Drill Diameter (d1):	1.10 mm
Shank Diameter (d2):	1.10 mm
Shank Tolerance:	h6
Overall Length (l1):	36 mm
Flute Length (l2):	14 mm

Contains

1 x Maykestag solid carbide drill DIN 338 N ALUNIT® 1.10mm

Tags: Maykestag , Drill , Solid Carbide Drill , ALUNIT Drill , 1.10mm Drill , DIN 338 , Type N , 118 Degree Drill , 5xD Drill , Code 6157 , Carbide Drill
