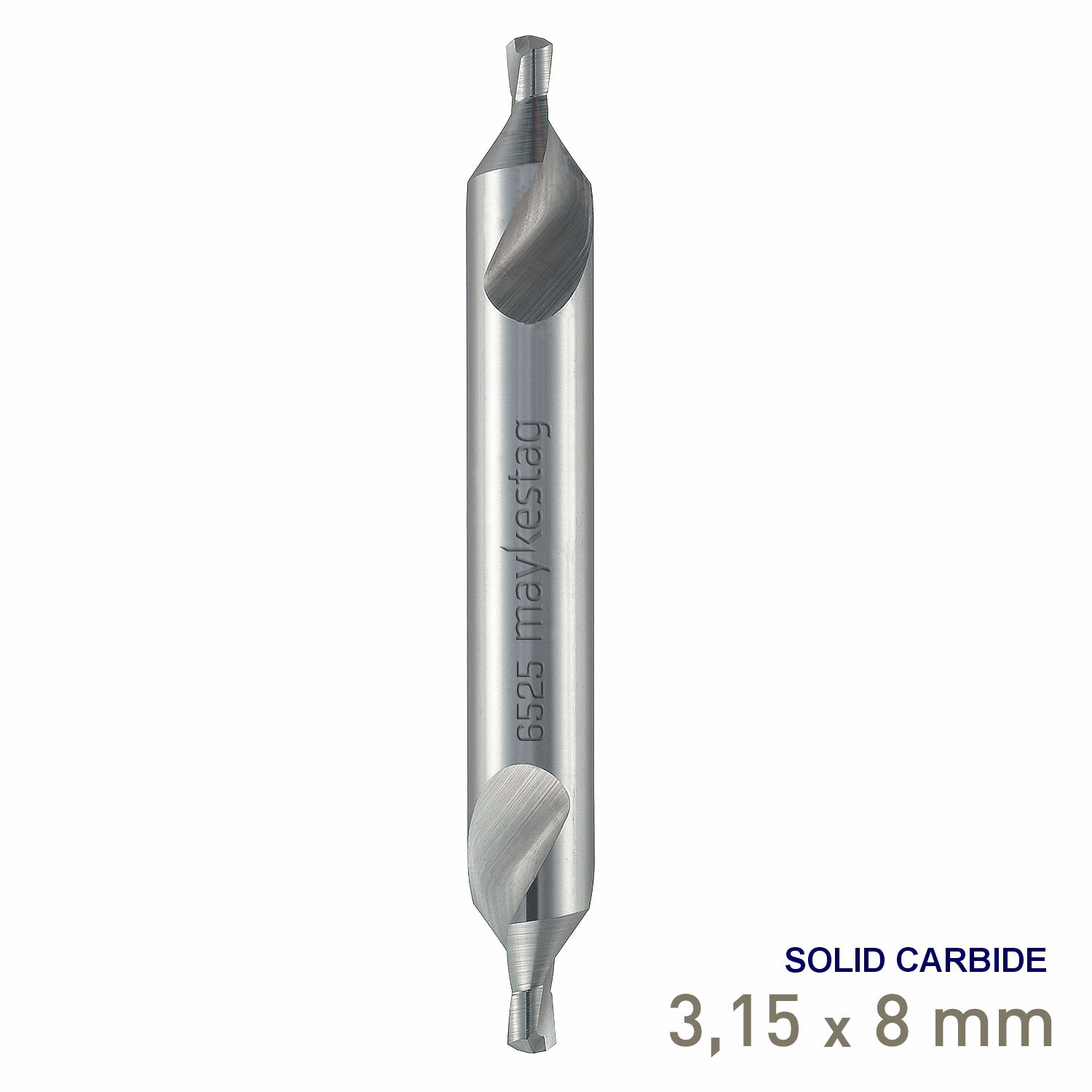

Maykestag VHM Solid Carbide Centre Drill 3.15mm DIN 333 A

Precision 3.15mm VHM solid carbide centre drill manufactured to DIN 333 A, featuring Type RN geometry, Form A design, 120°/60° cutting geometry and two cutting edges for accurate centre-hole preparation on workpieces from 30–40mm diameter.

The Maykestag Code 6525 solid carbide centre drill is designed for producing accurately positioned centre holes before subsequent turning, drilling and other precision machining operations. Manufactured from VHM solid carbide, this 3.15mm version combines a rigid 8mm body diameter with a compact 50mm overall length, providing excellent stability for controlled and repeatable centre-hole preparation.

What is a centre drill? A centre drill is a short, rigid cutting tool used to produce an accurately positioned centre hole in a workpiece. The smaller pilot section establishes the centre while the angled cutting section forms the conical seat. This creates a defined reference for subsequent machining operations where accurate positioning, alignment and repeatability are important.

Product highlights

  • VHM solid carbide construction: Provides excellent rigidity, wear resistance and dimensional stability for professional centre-drilling applications.
  • DIN 333 A: Manufactured according to the specified standard for Form A centre drills.
  • 3.15mm pilot diameter: Precision d1 diameter for producing accurately located centre holes.
  • Type RN: Maykestag-specified geometry for the Code 6525 centre-drill range.
  • Form A: Standard centre-drill form for producing conventional centre holes.
  • 120°/60° cutting geometry: Defined geometry for forming the pilot and conical centre profile.
  • Two cutting edges: Z = 2 cutting-edge configuration for controlled centre drilling.
  • 50mm overall length: Compact construction supports rigidity and controlled machining.
  • 30–40mm workpiece range: Maykestag specifies this 3.15mm centre drill for workpieces within this diameter range.

Why Choose Maykestag?

Maykestag precision cutting tools are designed for professional machining applications where controlled tool geometry, dimensional consistency and dependable performance matter. Centre drilling is commonly carried out early in the machining process, making accurate positioning of the centre hole an important foundation for the operations that follow.

The Code 6525 range combines VHM solid carbide construction with DIN 333 A, Form A geometry and clearly specified dimensional tolerances. This provides a rigid and dependable centre-drilling solution for workshops, toolrooms and production environments requiring consistent centre-hole preparation.

Accurate Centre-Hole Preparation

This 3.15mm version combines a 3.15mm pilot diameter with an 8mm body diameter and 50mm overall length. Its 120°/60° cutting geometry forms the pilot and conical centre profile in a controlled operation, while the solid carbide construction provides the rigidity required for accurate positioning. Correct cutting data, secure workholding and accurate machine alignment are important for achieving dependable machining results and good tool life.

Features

  • VHM solid carbide centre drill.
  • Manufactured to DIN 333 A.
  • Type RN geometry.
  • Form A centre-drill design.
  • 120°/60° cutting geometry.
  • 3.15mm pilot diameter with k13 tolerance.
  • 8.00mm body diameter with h7 tolerance.
  • 50mm overall length.
  • Two cutting edges (Z = 2).
  • Recommended for workpiece diameters from 30–40mm.
  • No internal coolant supply.

Recommended Applications

The Maykestag Code 6525 range is rated by Maykestag according to its suitability for different material groups. A higher rating indicates greater suitability for the application.

Steels below 400 N/mm²
4/4 Ideal
Steels below 850 N/mm²
4/4 Ideal
Steels below 1,100 N/mm²
3/4 Especially suitable
Steels below 1,300 N/mm²
2/4 Suitable
Stainless steels below 850 N/mm²
2/4 Suitable
Cast iron and malleable cast iron
3/4 Especially suitable
Copper and brass
3/4 Especially suitable
Aluminium
3/4 Especially suitable
Plastics
3/4 Especially suitable

Get the Right Cutting Data  SpeedGuide Calculator

MaySpeedGuide: Maykestag recommends using the MaySpeedGuide to determine the appropriate cutting conditions for the tool, workpiece material and machining application.

Optimise centre-drilling performance. Correct machine alignment, secure workholding and suitable cutting speed and feed are important for centre-hole accuracy and dependable tool life when using solid carbide centre drills.

Specifications

Description Spec
Brand: Maykestag
Product Description: VHM Solid Carbide Centre Drill 3.15mm
Cat No.: MAY65250031
Manufacturer Code: 0652500310100
Series Code: 6525
Standard: DIN 333 A
Type: RN
Form: A
Tool Material: VHM - Solid Carbide

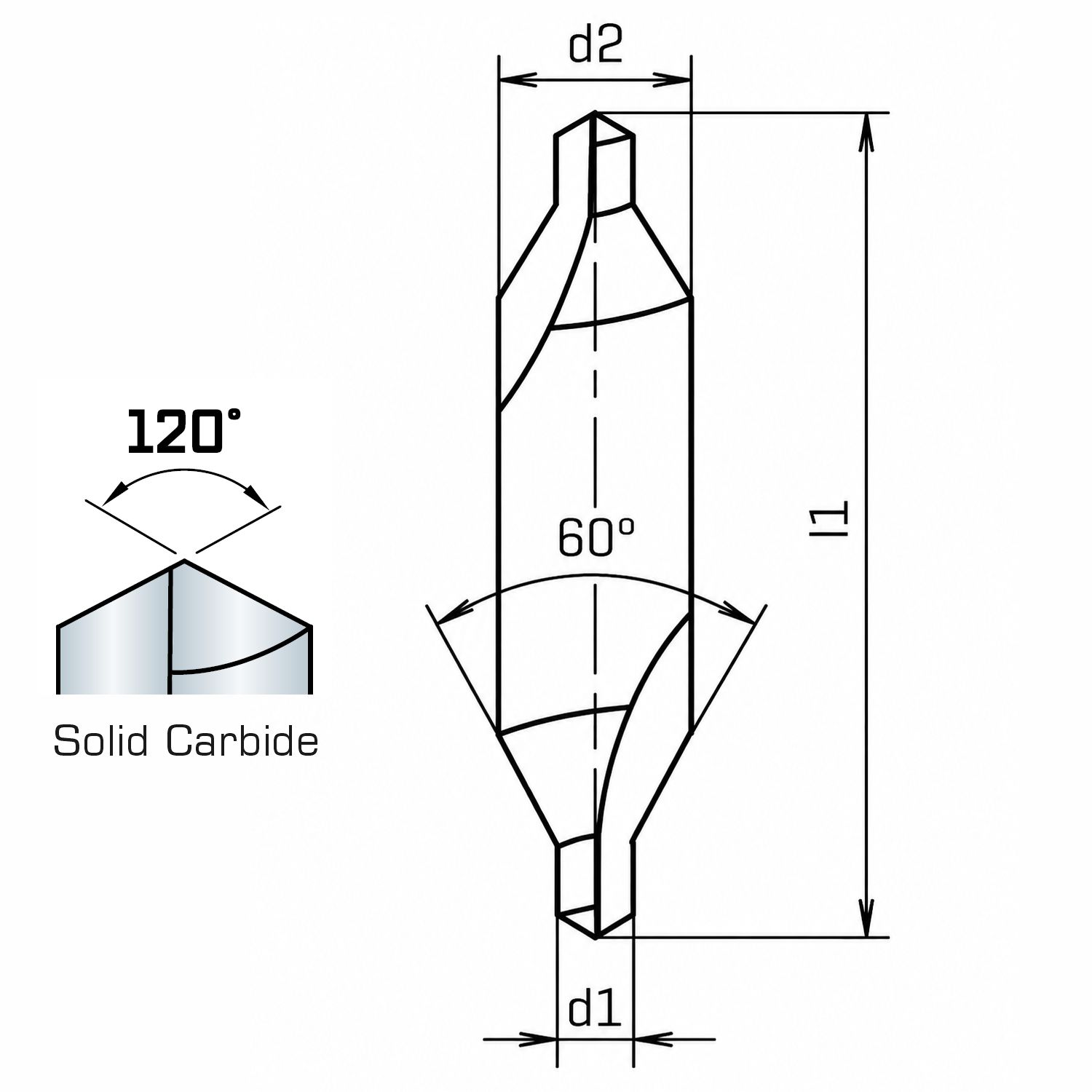

Lip Angle: 120°/60°
Coolant Supply: No
No. of Cutting Edges (Z): 2
Pilot Diameter (d1): 3.15 mm
Pilot Diameter Tolerance: k13
Body Diameter (d2): 8.00 mm
Body Diameter Tolerance: h7
Overall Length (l1): 50 mm
Recommended Workpiece Diameter (Ø*): 30-40 mm
Series Diameter Range: 0.8-5 mm

Scope of delivery

  • 1 x Maykestag VHM Solid Carbide Centre Drill 3.15mm DIN 333 A
