GAV RPF187 Pressure Reducing Valve & Filter 3/8"

GAV RPF187 Pressure Reducing Valve & Filter 3/8"
GAV RPF187 Pressure Reducing Valve & Filter 3/8"
  • Stock: 1 - 5 Days
  • Cat No: GAV RPF187
  • SKU: GAV RPF187
  • UPC: 8011275001854
GAV GAV
Product Views: 450
Based on 0 reviews. - Write a review
R 981.12
R 1,022.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

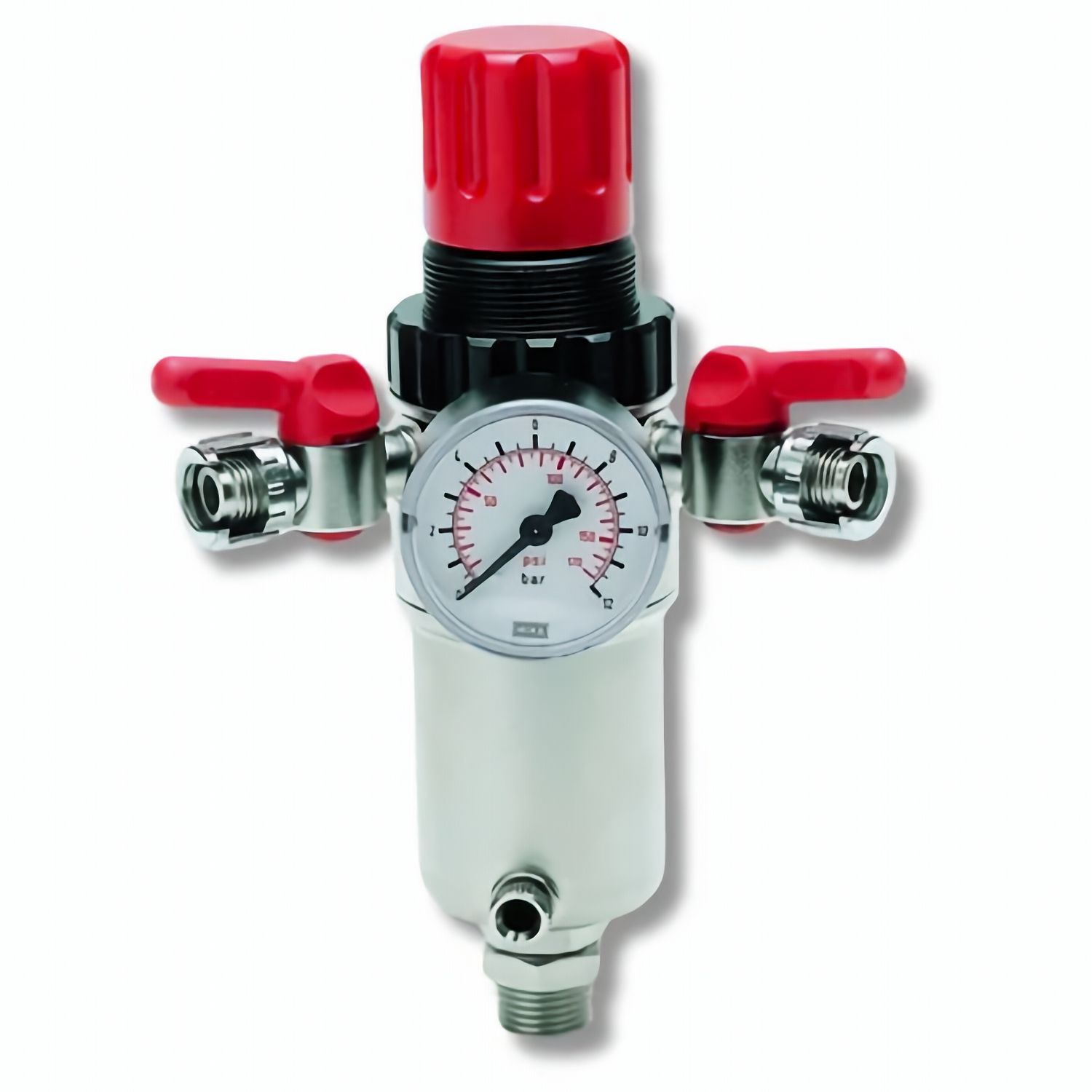

GAV RPF187 Pressure Reducing Valve & Filter 3/8"

GAV RPF187 is a pressure reducing valve with an integrated filter, Ø40 pressure gauge and two in-line cocks. It provides regulated and filtered compressed air for pneumatic systems, with a 3/8" BSP male bottom connection.

The GAV RPF187 combines pressure reduction and air filtration in a compact pneumatic air-treatment unit. It features a Ø40 pressure gauge, two in-line cocks and a 10 µm filter for removing contaminants from the compressed-air supply.

The RPF187 provides an adjustable pressure range of 0–10 BAR, with a maximum inlet pressure of 12 BAR and a flow rate of 1800 Nl/min at 6 BAR. The filter cup has a 30 ml capacity and the unit is configured with a 3/8" BSP male connection at the bottom.

Product Highlights

  • Pressure reducing valve with integrated filter
  • Ø40 pressure gauge
  • Two in-line cocks
  • Adjustable pressure range of 0–10 BAR
  • Maximum inlet pressure of 12 BAR
  • 10 µm filtration
  • 1800 Nl/min flow at 6 BAR
  • 30 ml filter cup capacity
  • 3/8" BSP male bottom connection
  • Made in Italy

Features

  • Pressure reduction: Regulates compressed-air pressure with an adjustable range of 0–10 BAR.
  • Integrated filtration: Provides 10 µm filtration to help remove contaminants from the compressed-air supply.
  • Ø40 pressure gauge: Provides pressure indication for monitoring the regulated air pressure.
  • Two in-line cocks: Provides integrated shut-off control for pneumatic connections.
  • High flow capacity: Provides a rated flow of 1800 Nl/min at 6 BAR.
  • 30 ml cup capacity: Provides the specified capacity for the filter cup.
  • 3/8" BSP male bottom connection: Provides the main connection to compatible pneumatic equipment.
  • Italian manufacture: Manufactured by GAV in Italy.

Recommended Applications

  • Compressed-air systems
  • Pneumatic equipment
  • Workshop air-line installations
  • Air preparation before pneumatic tools and equipment
  • Filtered and regulated compressed-air supply
  • Industrial and general pneumatic applications

Extra Information

  1. The GAV RPF187 combines pressure reduction and filtration in one pneumatic air-treatment unit.
  2. The model designation is RPF187 3/8M.
  3. The adjustment range is 0–10 BAR.
  4. The maximum inlet pressure is 12 BAR.
  5. The filtration rating is 10 µm.
  6. The rated flow is 1800 Nl/min at 6 BAR.
  7. The filter cup capacity is 30 ml.
  8. The unit has a Ø40 pressure gauge and two in-line cocks.
  9. The body connection is 1/4" BSP female.
  10. The line cock connection is 1/4" BSP male.
  11. The bottom connection is 3/8" BSP male.
  12. GAV manufactures the RPF187 in Italy.
Install the filter and regulator in the correct air-flow direction. Ensure that the compressed-air supply does not exceed the 12 BAR maximum inlet pressure and that the 1/4" BSP and 3/8" BSP connections are correctly matched to the pneumatic installation before restoring system pressure.
Important: Depressurise the compressed-air system before installing, removing or servicing the pressure reducing valve and filter. Do not exceed the specified 12 BAR maximum inlet pressure. Ensure that all threaded connections are correctly sized and securely installed before restoring system pressure.

Specifications

Description Spec
Brand GAV
Model RPF187
Product type Pressure reducing valve & filter
Model designation RPF187 3/8M
Adjustment range 0–10 BAR
Maximum inlet pressure 12 BAR
Flow 1800 Nl/min at 6 BAR
Filtration 10 µm
Filter cup capacity 30 ml
Pressure gauge Ø40
Number of in-line cocks 2
Body thread 1/4" BSP female
Line cock thread 1/4" BSP male
Bottom thread 3/8" BSP male
Country of manufacture Italy
UPC 8011275001854

Contains:

  • 1 x GAV RPF187 pressure reducing valve & filter
Tags: Air Regulators , GAV , RPF187 , Pressure Reducing Valve , Filter , Filter Regulator , 3/8 inch , 3/8 BSP , Pressure Gauge , ø40 , 10 micron , Pneumatics , Compressed Air , Ø40
