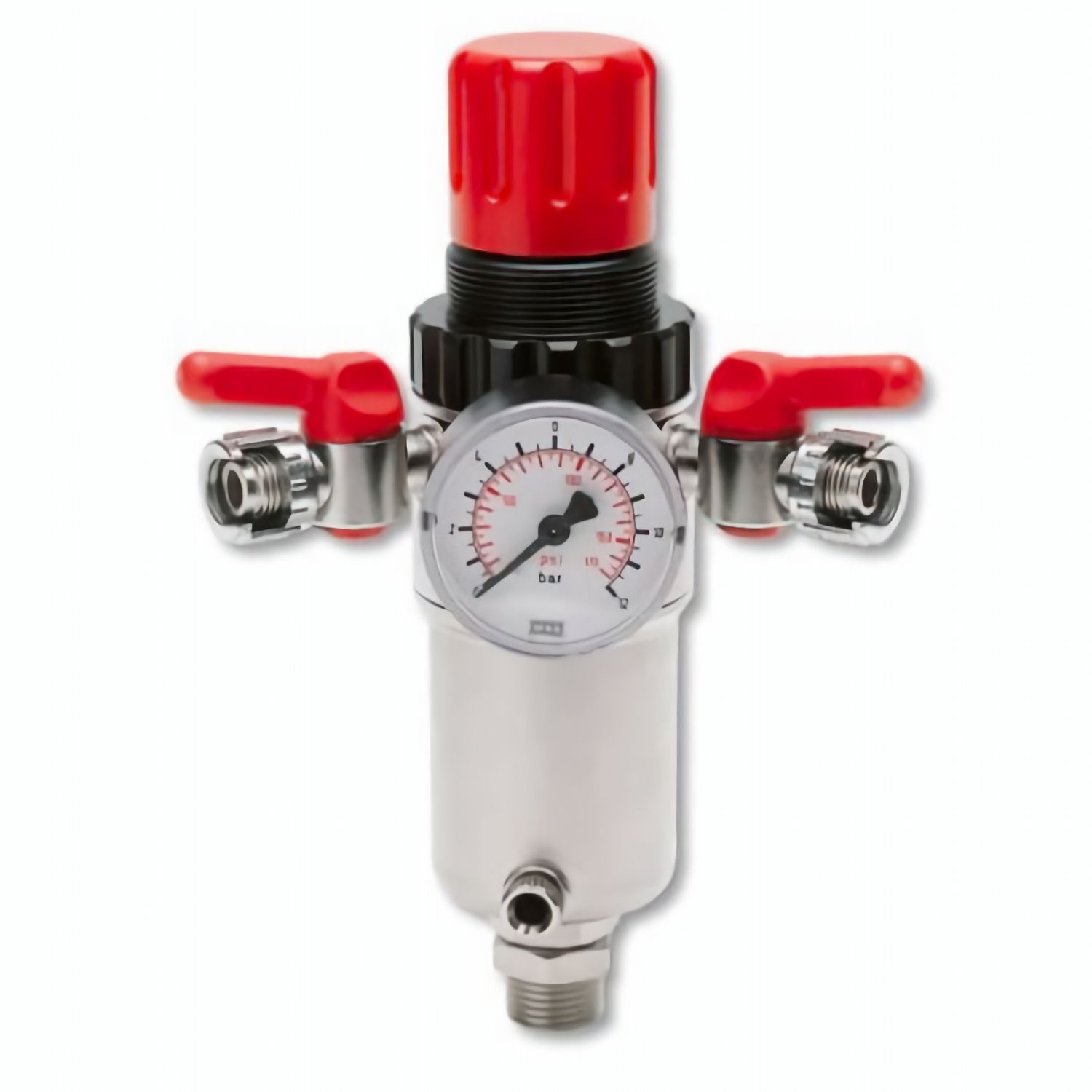

GAV RPF188 Pressure Reducing Valve & Filter 1/2"

Features

• Pressure reduction: Regulates compressed-air pressure with an adjustable range of 0–12 BAR.
• Integrated filtration: Provides 10 µm filtration to help remove contaminants from the compressed-air supply.
• Ø50 pressure gauge: Provides pressure indication for monitoring the regulated air pressure.
• Two in-line cocks: Provides integrated control of the pneumatic connections.
• High flow capacity: Provides a rated flow of 5,000 Nl/min at 6 BAR.
• 50 ml cup capacity: Provides the specified capacity for the filter cup.
• 1/2" BSP male bottom connection: Provides connection to compatible pneumatic equipment.
• Italian manufacture: Manufactured by GAV in Italy.

Recommended Applications

• Compressed-air systems
• High-flow pneumatic equipment
• Workshop air-line installations
• Air preparation before pneumatic tools and equipment
• Filtered and regulated compressed-air supply
• Industrial and general pneumatic applications

Extra Information

Specifications

Contains:

• 1 x GAV RPF188 pressure reducing valve & filter
