Name: GAV112-3P Quick Coupler Euroline 1/2" Male
Brand: GAV
SKU: GAV112-3P
Price: 189.12 ZAR
Availability: InStock

GAV112-3P Quick Coupler Euroline 1/2" Male

Stock: 1 - 5 Days
Cat No: GAV112-3P 9757
SKU: GAV112-3P
UPC: 6009515815424

GAV

Product Views: 426

Based on 0 reviews. - Write a review

R 189.12

R 197.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

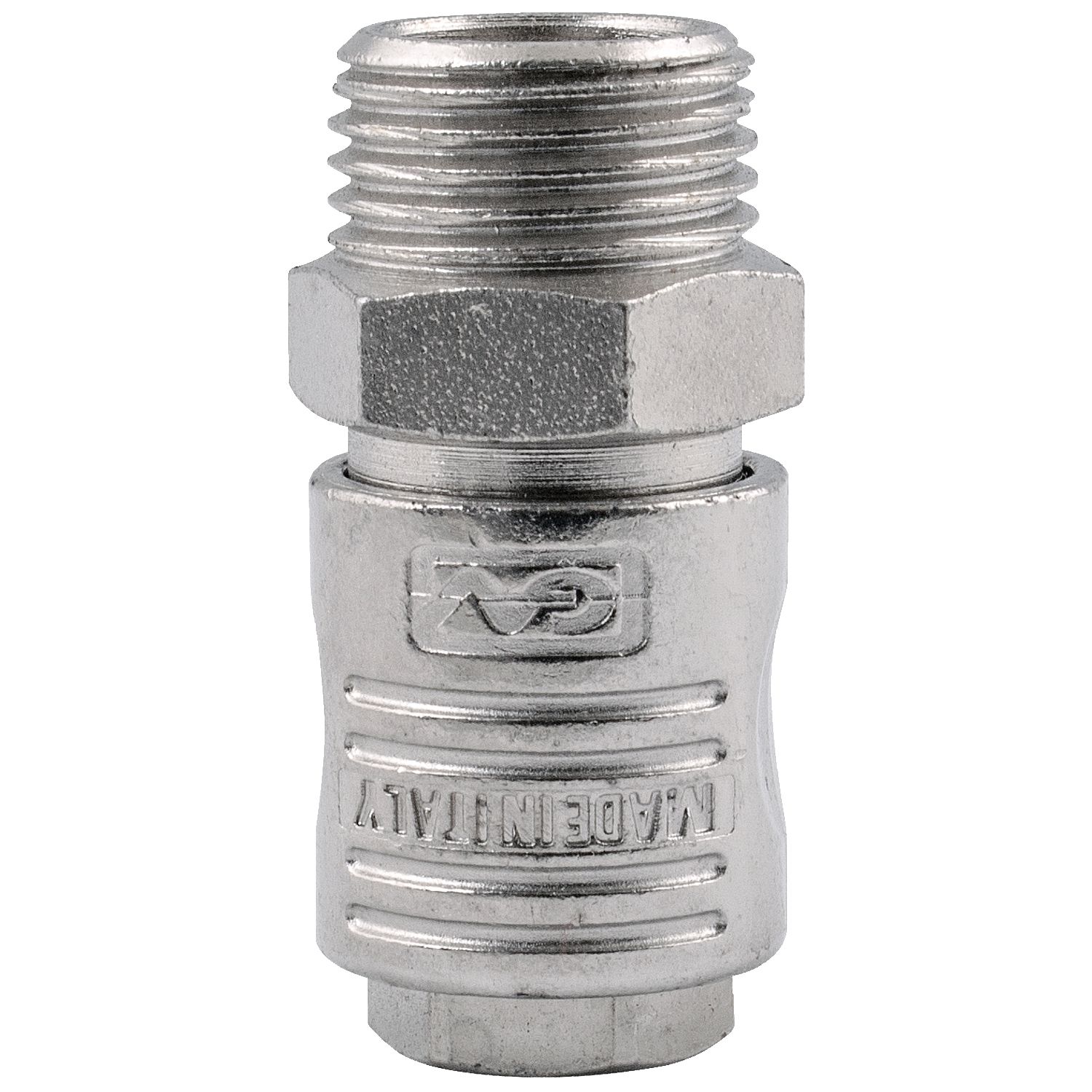

GAV112-3P Quick Coupler Euroline 1/2" Male

GAV112-3P is a universal Euroline quick coupler designed with a 1/2" BSP male thread. It provides a convenient quick-connect solution for compressed-air and pneumatic systems and is supplied in a packaged retail version.

The GAV112-3P is a universal quick coupler from the GAV Euroline series, featuring a 1/2" BSP male threaded connection. Its universal design allows compatibility with different connector profiles, providing a practical solution for adapting pneumatic air lines.

The Euroline series is designed for compressed-air and pneumatic applications where a reliable quick connection is required. The GAV112-3P operates from 0 to 16 BAR and within a temperature range of -15 °C to +80 °C.

Product Highlights

Universal Euroline quick coupler
1/2" BSP male thread
Operating pressure 0–16 BAR
Operating temperature -15 °C to +80 °C
Suitable for different connector profiles
For compressed-air and pneumatic applications
Packaged retail version
Made in Italy

Features

Universal Euroline design: Allows compatibility with different connector profiles for greater flexibility when adapting pneumatic air lines.
1/2" BSP male thread: Provides a threaded connection to compatible pneumatic equipment and air-line components.
Quick connection: Provides a convenient connection and disconnection point within compressed-air systems.
16 BAR operating pressure: Suitable for pneumatic applications with an operating pressure range of 0–16 BAR.
Wide temperature range: Designed for operation from -15 °C to +80 °C.
Pneumatic application: Suitable for compressed-air systems, workshop air lines and pneumatic equipment.
Packaged supply: Supplied in a packaged retail version for convenient handling and storage.
Italian manufacture: Manufactured by GAV in Italy.

Recommended Applications

Compressed-air systems
Workshop air-line installations
Pneumatic equipment connections
1/2" BSP threaded connections
Air-line adaptation and connection
Industrial and general pneumatic applications

Extra Information

The GAV112-3P belongs to the GAV Euroline series of universal quick couplers.
This model features a 1/2" BSP male threaded connection.
The coupler is designed to accommodate different connector profiles for pneumatic air-line applications.
The operating pressure range is 0–16 BAR.
The operating temperature range is -15 °C to +80 °C.

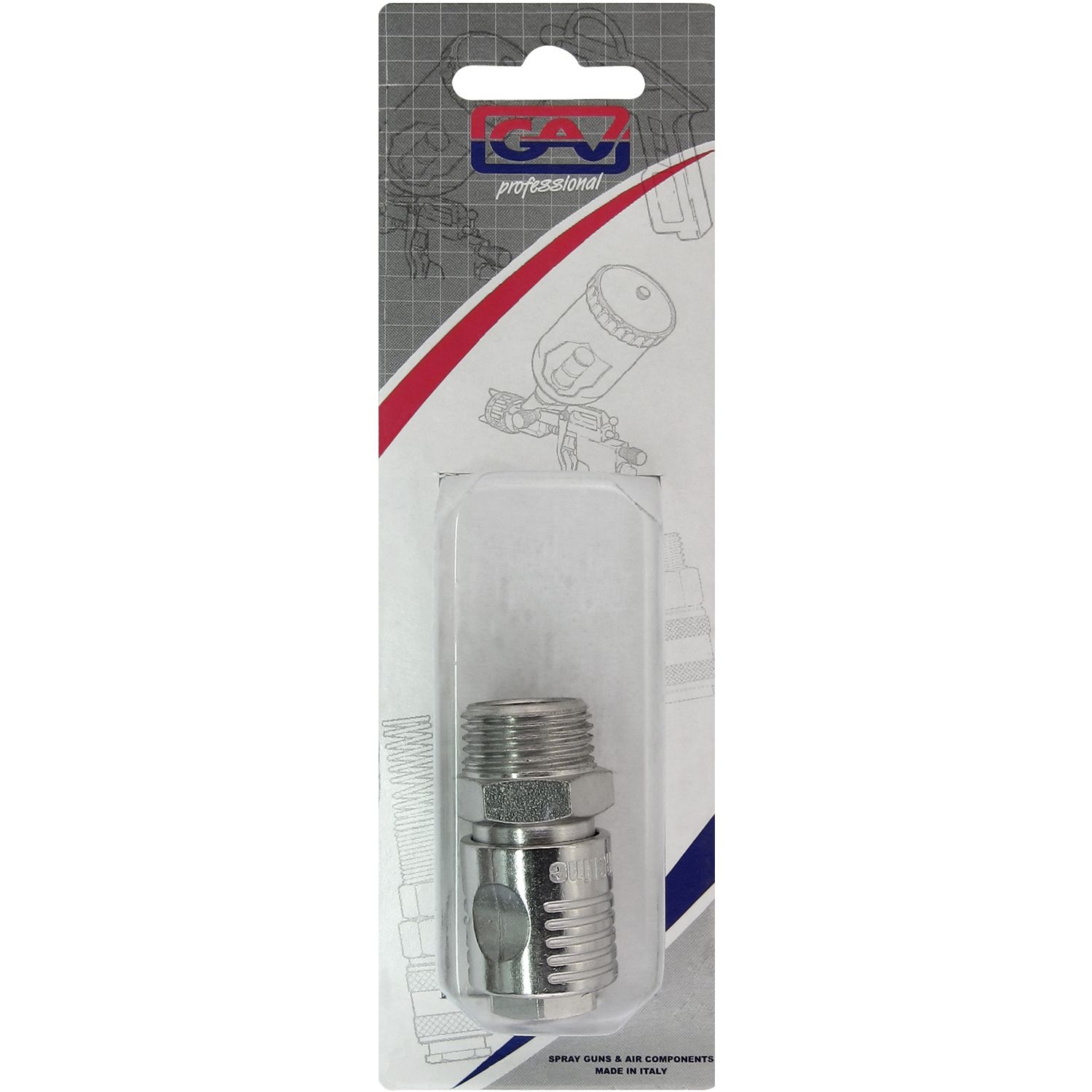

The GAV112-3P is supplied as a packaged retail version.
The overall length is 48.5 mm, with a 22 mm body diameter.
The spanner size for the fitting is 22 mm.

Use the correct thread and compatible connector profile. Ensure that the pneumatic equipment has a compatible 1/2" BSP male connection and that the mating connector is suitable for the Euroline universal quick coupler before installation.

Important: Depressurise the compressed-air system before installing, removing or servicing pneumatic fittings. Ensure the threaded connection and mating quick-coupler profile are correctly matched and securely installed before restoring system pressure.

Specifications

Description	Spec
Brand	GAV
Model	GAV112-3P
Product type	Quick coupler
Series	Euroline
Coupler type	Universal
Thread	1/2" BSP male
Overall length	48.5 mm
Body diameter	22 mm
Thread length	10.5 mm
Spanner size	22 mm
Operating pressure	0–16 BAR
Operating temperature	-15 °C to +80 °C
Application	Compressed air / pneumatics
Supply type	Packaged retail version
Country of manufacture	Italy
UPC	6009515815424

Contains:

1 x GAV112-3P Euroline 1/2" BSP male universal quick coupler

Tags: Pneumatic Fittings , GAV , GAV112-3P , Euroline , Quick Coupler , Universal Quick Coupler , 1/2 inch , 1/2 BSP Male , Pneumatics , Compressed Air , Packaged
