MAYKESTAG Speedcut 4.0 Universal HPC Solid Carbide End Mill 3mm Long Series 4 Flute TWINDUR

Maykestag Speedcut 4.0 Universal HPC Solid Carbide End Mill 3mm

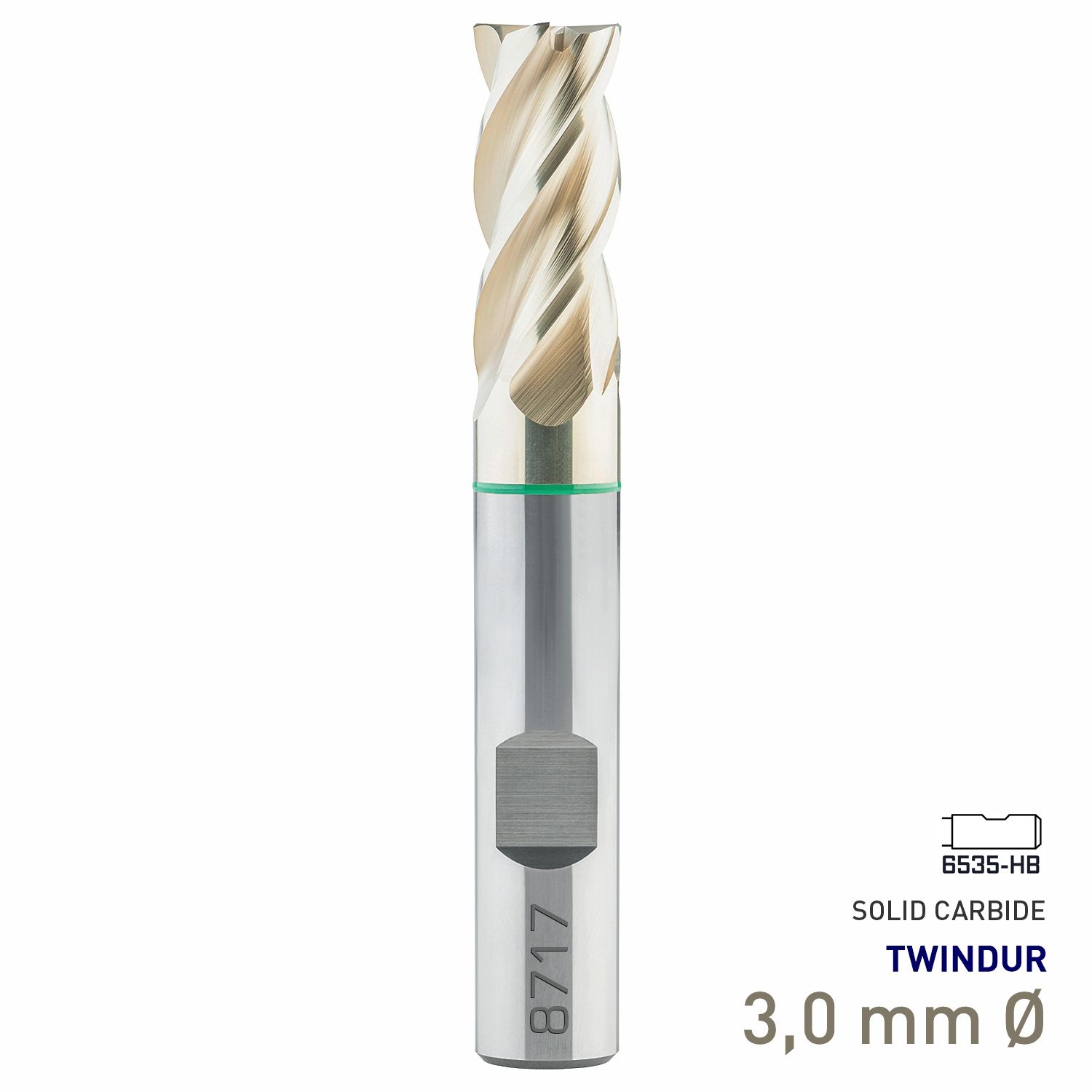

Professional 3mm Speedcut 4.0 Universal HPC end mill manufactured from solid carbide (VHM), featuring four flutes, unequal 35°-38° spiral angles, long-series geometry, a 0.15mm x 45° corner chamfer and Maykestag TWINDUR coating for high-performance universal milling applications.

The Maykestag Code 8717 Speedcut 4.0 Universal is a high-performance solid-carbide end mill developed for accurate and productive milling across a broad range of engineering materials. The cutter combines four cutting edges with different spiral angles to provide a controlled cutting action while helping reduce the tendency towards vibration during demanding machining operations. Its long-series construction provides additional working reach, while the precision-ground geometry supports accurate profiling, shoulder milling, slotting and general end-milling applications.

Product highlights

• Speedcut 4.0 Universal: Maykestag&s high-performance universal milling geometry designed for productive machining across a broad selection of suitable engineering materials.
• Solid carbide construction: Manufactured from VHM solid carbide for high rigidity, dimensional stability and dependable cutting performance.
• Four-flute geometry: Four cutting edges provide effective cutting engagement and productive material removal during milling operations.
• Unequal spiral angles: Different spiral angles between 35° and 38° help interrupt repetitive cutting forces and reduce the tendency towards vibration and chatter.
• Long-series design: Provides increased working reach for applications requiring access beyond that available from a short-series cutter.
• TWINDUR coating: Supplied with Maykestag&s specified TWINDUR coating for the Code 8717 Speedcut 4.0 Universal series.
• 0.15mm x 45° corner chamfer: The cutting-end corner incorporates the specified protective chamfer geometry for this 3mm cutter.
• DIN 6527 L: Manufactured to the specified long-series end-mill standard.
• DIN 6535-HB shank: Precision cylindrical shank with driving flat for secure location in compatible toolholding systems.

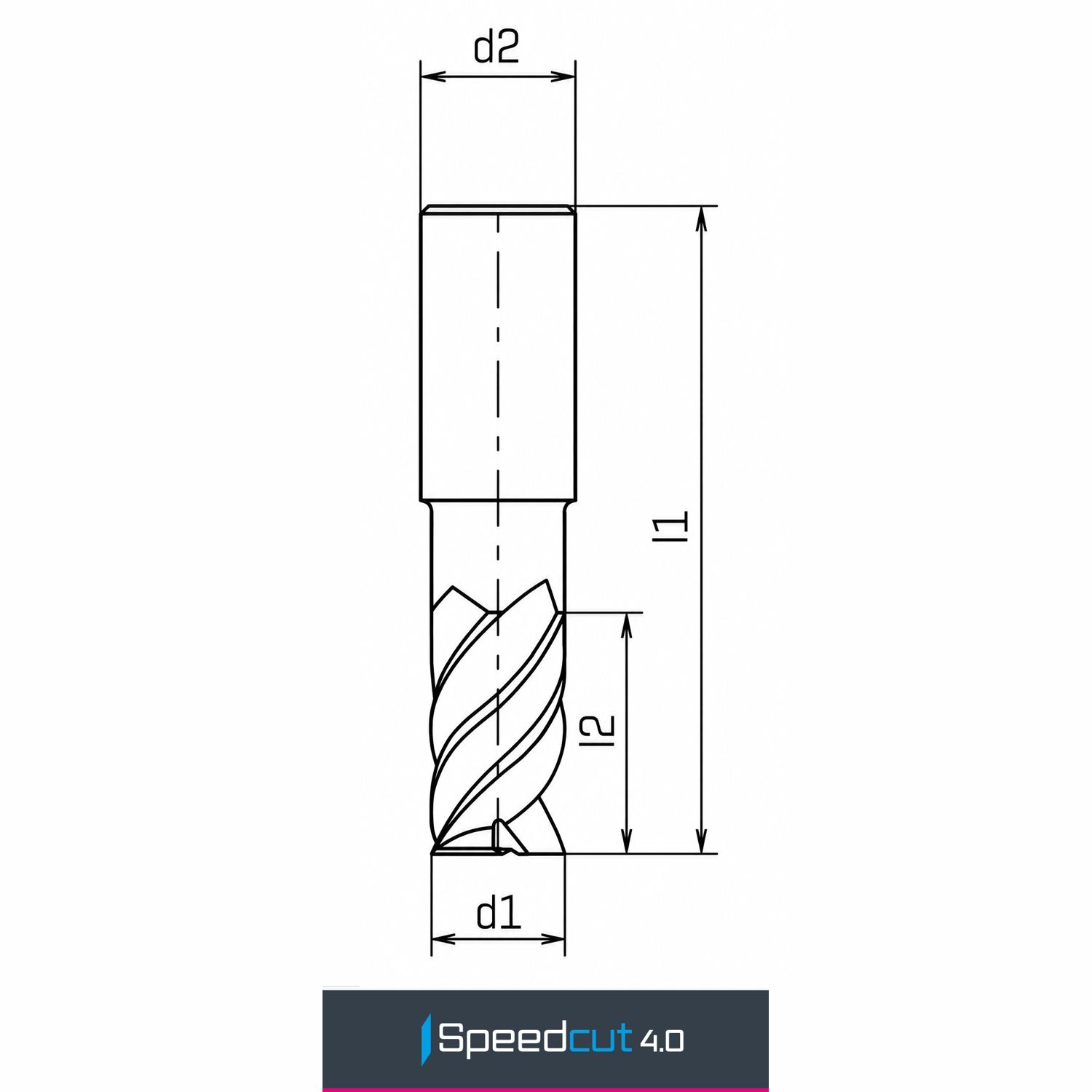

• Precision tolerances: Cutting diameter is specified to h10 tolerance and the shank diameter to h6.

Designed for Universal HPC Milling

The four-flute design provides multiple cutting edges for efficient material removal, while the unequal 35°-38° spiral geometry helps prevent all cutting edges from generating identical cutting-force impulses at the same frequency. This can help produce a smoother cutting action and reduce the tendency towards chatter under appropriate machining conditions.

The long-series configuration gives the cutter additional reach for deeper shoulders, profiles and machining situations where tool access is important. As with any long-series milling cutter, correct toolholding, minimum practical overhang and appropriate cutting data are important for maintaining rigidity and achieving the best possible surface finish and tool life.
