Name: MAYKESTAG Speedcut 4.0 Universal HPC Solid Carbide End Mill 10mm Long Series 4 Flute
Brand: MAYKESTAG
SKU: MAY82170100
Price: 2657.62 ZAR
Availability: OutOfStock

MAYKESTAG Speedcut 4.0 Universal HPC Solid Carbide End Mill 10mm Long Series 4 Flute

Sold Out

MAYKESTAG Speedcut 4.0 Universal HPC Solid Carbide End Mill 10mm Long Series 4 Flute

Stock: Sold Out
Cat No: MAY82170100 12934
SKU: MAY82170100
UPC: 9002741176205

MAYKESTAG

Product Views: 1

Based on 0 reviews. - Write a review

Don't snooze, this offer ends in:

Day

Hour

Min

Sec

R 2,657.62

R 3,241.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

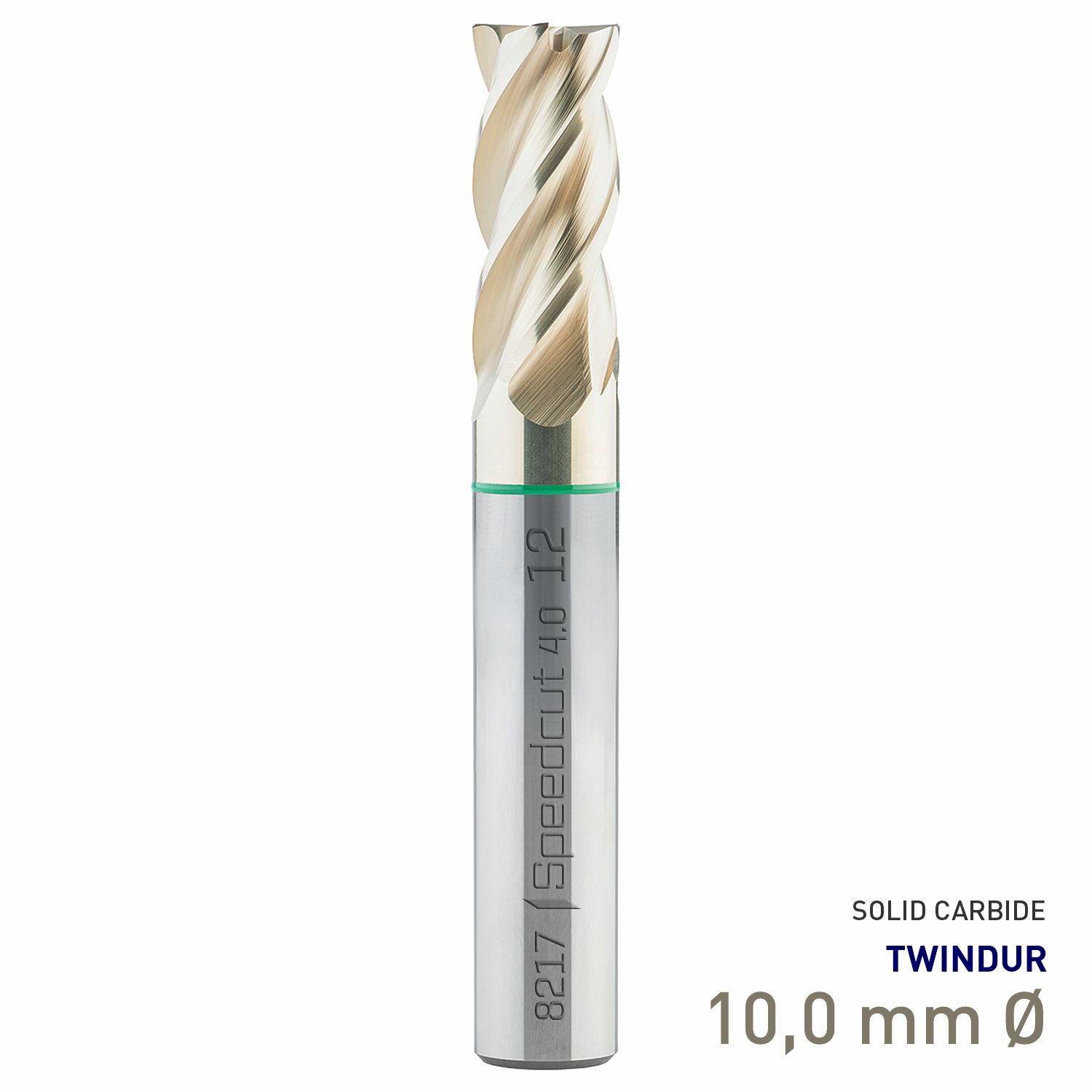

Maykestag Speedcut 4.0 Universal HPC Solid Carbide End Mill 10mm

Professional 10mm long-series HPC end mill from the Maykestag Speedcut 4.0 Universal range, manufactured from VHM solid carbide and featuring 4 cutting flutes, Type N geometry, different 35°–38° spiral angles, a TWINDUR coating and a precision DIN 6535-HA shank.

The Maykestag Code 8217 Speedcut 4.0 Universal range is designed for high-performance milling across a broad selection of engineering materials. This 10mm cutter combines solid-carbide construction with a long-series DIN 6527 L design, four cutting flutes and different spiral angles of 35°–38°. The cutter is finished with Maykestag&s TWINDUR coating and is manufactured with closely controlled cutting and shank tolerances for professional CNC and precision milling applications.

What is an HPC end mill? HPC stands for High Performance Cutting. An HPC end mill is designed for productive machining where cutting geometry, tool material, flute configuration and coating work together to provide controlled cutting performance at appropriately selected speeds and feed rates. The Speedcut 4.0 Universal Code 8217 combines solid-carbide construction with a multi-flute design and different spiral angles for professional milling applications.

Product highlights

Speedcut 4.0 Universal: Part of Maykestag&s professional HPC milling range for versatile machining applications.
VHM solid-carbide construction: Provides the rigidity, dimensional stability and cutting-edge strength required for precision milling.
10mm cutting diameter: Precision-ground cutting diameter with an h10 tolerance.
4-flute geometry: This 10mm version of the Code 8217 range is manufactured with four cutting flutes.
Different spiral angles: 35°–38° spiral-angle geometry as specified by Maykestag for the Code 8217 series.
Type N geometry: General-purpose cutter geometry designed for the universal machining characteristics of this range.
Long-series construction: DIN 6527 L configuration provides extended tool reach compared with short-series cutters.
TWINDUR coating: Maykestag&s specified coating for the Code 8217 Speedcut 4.0 Universal range.
45° corner chamfer: This 10mm cutter has a 0.25mm 45° cutting-edge chamfer according to Maykestag&s dimensional data.
DIN 6535-HA shank: Precision cylindrical shank manufactured to the specified DIN shank form.
Precision tolerances: Cutting diameter d1 is manufactured to h10 and shank diameter d2 to h6.

Why Choose Maykestag?

Maykestag develops professional cutting tools with carefully specified cutting geometry, dimensional tolerances, tool materials and application data. These details are especially important in CNC milling, where cutter rigidity, dimensional accuracy, cutting-edge consistency and correct cutting conditions all contribute to repeatable machining results.

The Code 8217 Speedcut 4.0 Universal series combines VHM solid carbide, TWINDUR coating, Type N geometry and different spiral angles in a long-series HPC end mill. Maykestag rates the range particularly highly for steels up to 1,100 N/mm² and for cast iron, while also providing suitability ratings for higher-strength steels, stainless steels, copper, brass and aluminium.

Designed for Universal HPC Milling

The Code 8217 range is specified with 3 to 4 flutes depending on cutter diameter. This 10mm version uses four flutes. Its 35°–38° different spiral-angle geometry forms part of the cutter&s Speedcut 4.0 Universal HPC design. Combined with the rigid solid-carbide body, TWINDUR coating and precision DIN 6535-HA shank, the cutter is intended for accurate professional milling when used with suitable machine rigidity, tool holding and cutting data.

Features

Speedcut 4.0 Universal HPC end mill for professional milling applications.
VHM solid carbide construction for high rigidity and precision machining.
DIN 6527 L long-series design with a 72mm overall length.
10.00mm cutting diameter manufactured to h10 tolerance.
4 cutting flutes on this 10mm version.
Type N geometry for universal milling applications.
35°–38° different spiral angles as specified for the Code 8217 range.
0.25mm x 45° corner chamfer on this 10mm cutter.
TWINDUR coating as specified by Maykestag.
DIN 6535-HA cylindrical shank with a 10.00mm shank diameter.
h6 shank tolerance for precision tool holding.
No internal coolant channels in the Code 8217 range.

Recommended Applications

The Maykestag Code 8217 range is rated by Maykestag according to its suitability for different material groups. A higher rating indicates greater suitability for the application.

Steels below 400 N/mm²

4/4 Ideal

Steels below 850 N/mm²

4/4 Ideal

Steels below 1,100 N/mm²

4/4 Ideal

Steels below 1,300 N/mm²

3/4 Especially suitable

Steels above 45 HRC - catalogue limit below 50 HRC

2/4 Suitable

Stainless steels below 850 N/mm²

3/4 Especially suitable

Stainless steels above 850 N/mm²

2/4 Suitable

Cast iron and malleable cast iron

4/4 Ideal

Copper and brass

2/4 Suitable

Aluminium

2/4 Suitable

Catalogue note: Maykestag does not show an application suitability rating for nickel, titanium and titanium alloys, or plastics for the Code 8217 range.

Get the Right Cutting Data SpeedGuide Calculator

MaySpeedGuide: Maykestag recommends using the MaySpeedGuide to determine the appropriate cutting speed, feed rate and machining conditions for the tool, workpiece material and milling operation.

Optimise tool holding and cutting conditions. Solid-carbide end mills perform best with a rigid machine setup, secure tool holding and minimal run-out. Correct cutting speed, feed per tooth, engagement and machining strategy should be selected for the workpiece material and the 10mm cutter diameter.

Why the Correct Cutting Data Matters

Cutting diameter, flute count, workpiece material, radial and axial engagement, machining strategy and machine rigidity all influence the correct spindle speed and feed rate. Using Maykestag&s SpeedGuide data helps match the cutting conditions to the specific tool and material rather than relying on generic milling parameters, supporting dependable tool life, dimensional accuracy and surface finish.

Specifications

Description	Spec
Brand:	Maykestag
Product Description:	Speedcut 4.0 Universal HPC Solid Carbide End Mill 10mm
Cat No.:	MAY82170100
Manufacturer Code:	0821701000100
Series Code:	8217
Product Range:	Speedcut 4.0 Universal
Standard:	DIN 6527 L
Type:	N
Length Series:	Long
Tool Material:	VHM - Solid Carbide
Coating:	TWINDUR
No. of Flutes:	4
Series Flute Range:	3 - 4
Spiral Angle:	35° - 38°
Spiral Geometry:	Different spiral angles
Head Type:	45° corner chamfer
Corner Chamfer:	0.25 mm x 45°
Shank Type:	DIN 6535-HA
Coolant Channels:	No

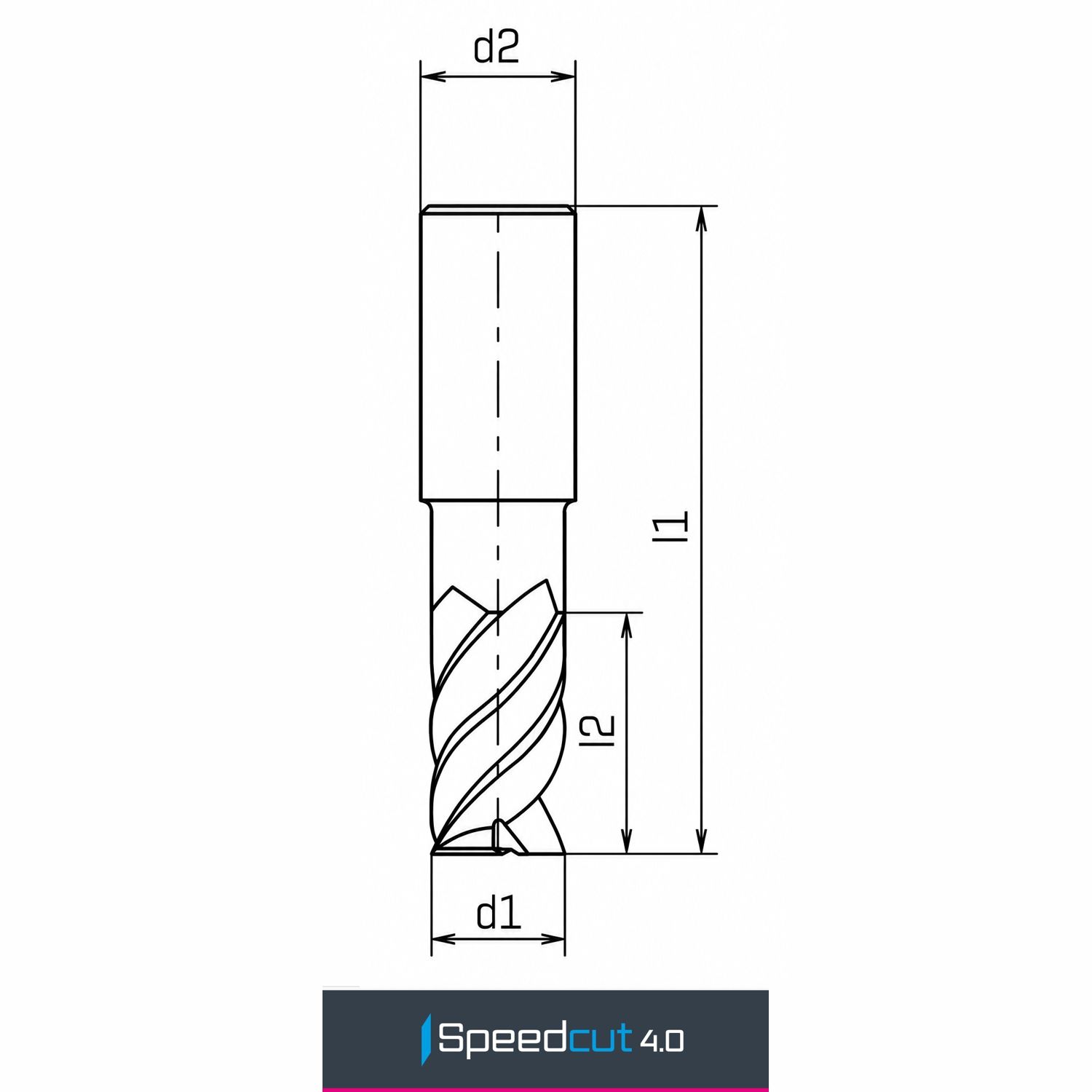

Cutting Diameter Tolerance:	h10
Cutting Diameter (d1):	10.00 mm
Shank Diameter (d2):	10.00 mm
Shank Diameter Tolerance:	h6
Overall Length (l1):	72 mm
Cutting Length (l2):	22 mm

Scope of delivery

1 x Maykestag Speedcut 4.0 Universal HPC Solid Carbide End Mill 10mm

Tags: Maykestag , Speedcut 4.0 , Universal HPC End Mill , Solid Carbide End Mill , VHM End Mill , 10mm End Mill , 4 Flute End Mill , Long Series End Mill , TWINDUR , Type N , DIN 6527 L , Code 8217
