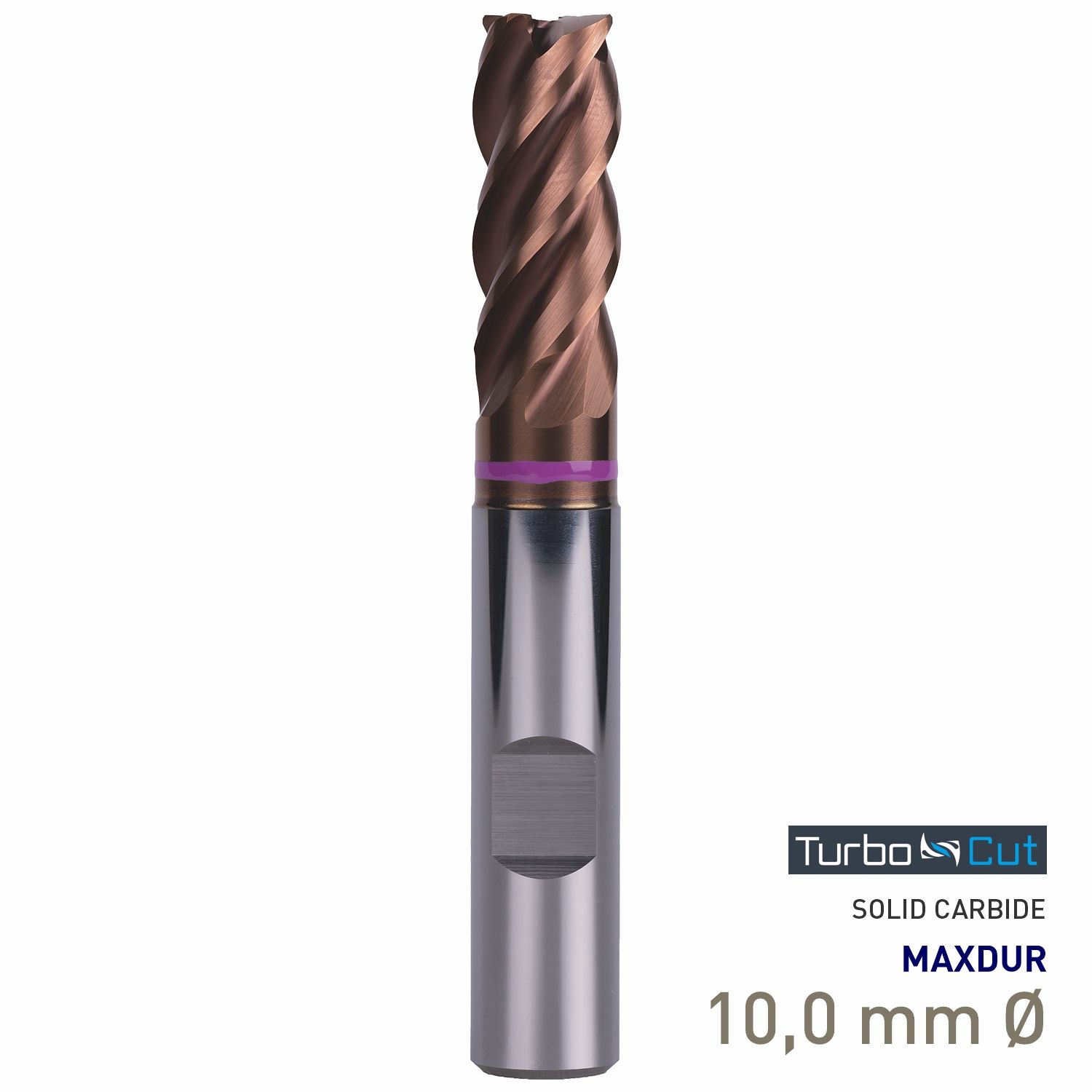

MAYKESTAG Turbo-Cut Allround Solid Carbide End Mill 10mm Long Series 4 Flute

Maykestag Turbo-Cut Allround Solid Carbide End Mill 10mm Long Series

Professional 10mm high-performance solid carbide end mill from the Maykestag Turbo-Cut Allround range, featuring four flutes, unequal 41°-43° spiral geometry, neck relief, MAXDUR coating and a DIN 6535-HB shank for versatile high-performance milling.

The Maykestag Code 8123 Turbo-Cut Allround is a high-performance solid carbide end mill developed for a particularly broad range of milling operations and workpiece materials. Its unequal spiral geometry helps create a controlled cutting action, while the relieved neck provides additional clearance beyond the cutting section for demanding profiling, shoulder milling and contouring applications. The long-series design extends machining reach while retaining the rigidity and wear resistance associated with solid carbide construction.

Product highlights

• Solid carbide construction: VHM solid carbide provides high rigidity, dimensional stability and wear resistance for professional CNC milling.
• Turbo-Cut Allround geometry: Developed for an exceptionally broad range of milling operations and suitable workpiece materials.
• Four-flute design: Four cutting edges support productive material removal and a controlled surface finish.
• Unequal spiral geometry: 41°-43° unequal spiral angles provide a varied cutting action for high-performance milling.
• Neck-relieved design: Reduced neck diameter behind the cutting section provides additional clearance when machining shoulders, profiles and deeper contours.
• Long-series construction: Provides extended reach for applications requiring greater access to the workpiece.
• MAXDUR coating: Maykestag MAXDUR coated cutting surfaces are designed for demanding professional machining applications.
• Type N geometry: General-purpose cutting geometry suited to the broad application range of the Turbo-Cut Allround series.
• 45° corner chamfer: The 10mm cutter incorporates a 0.25mm protective corner chamfer.
• DIN 6535-HB shank: Cylindrical shank with driving flat for secure clamping in compatible toolholding systems.
• WN specification: Manufactured according to Maykestag&s specified works-standard geometry and dimensional requirements for the Code 8123 series.

Designed for Versatile High-Performance Milling

The Turbo-Cut Allround geometry is designed to combine productive material removal with versatility. Four cutting edges provide an efficient cutting action, while the unequal spiral arrangement helps prevent all cutting edges from engaging the workpiece in exactly the same manner. The relieved neck increases clearance behind the cutting section and supports machining around shoulders and deeper contours. Combined with the rigidity of solid carbide and Maykestag&s MAXDUR coating, the Code 8123 is designed for dependable performance across an unusually wide selection of steels, stainless steels, cast materials and selected non-ferrous alloys.
