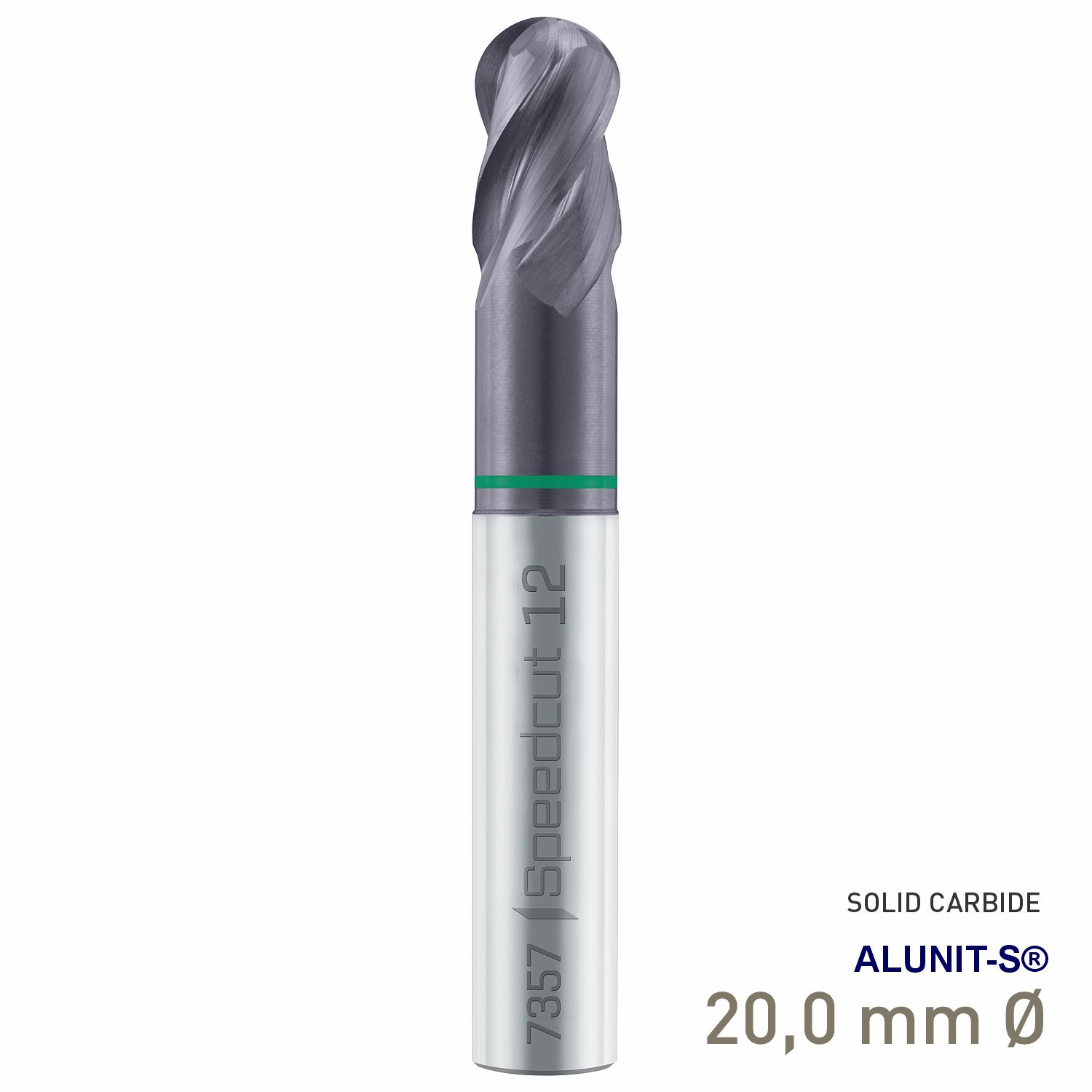

MAYKESTAG Speedcut Universal Solid Carbide Ballnose End Mill 20.00mm R10 Z4 ALUNIT-S

Maykestag Speedcut Universal Solid Carbide Ballnose End Mill 20.00mm R10 Z4 ALUNIT-S

High-performance 20mm Maykestag Speedcut Universal solid carbide ballnose end mill with 10mm radius, four flutes, variable 35°–38° spiral angles and ALUNIT-S coating. The long-series, necked design with DIN 6535-HA cylindrical shank is designed for universal milling applications where controlled cutting performance, smooth running and excellent surface quality are required.

The Maykestag Code 7357 Speedcut Universal is a high-performance solid carbide ballnose end mill designed for universal machining applications. This 20.00mm version features a 10mm ballnose radius, four cutting edges and unequal spiral angles of 35°–38°. The variable spiral geometry helps promote smooth, vibration-reduced running and consistent machining performance across a broad range of materials.

Manufactured from solid carbide and finished with a ALUNIT-S coating, the tool combines high rigidity and wear resistance with a long-series, necked geometry. The 20mm shank is manufactured to h6 tolerance and uses a DIN 6535-HA cylindrical shank. The 20mm version has an overall length of 104mm, an effective cutting length of 30mm and a 54mm neck length.

Product highlights

• Speedcut Universal: Maykestag&s high-performance universal solid carbide milling solution for demanding machining applications.
• 20.00mm cutting diameter: Large-diameter geometry for efficient material removal and finishing of larger contoured surfaces.
• 10mm ballnose radius: Full-radius cutting geometry for profiling, contouring and 3D surface machining.
• Four-flute design: Four cutting edges provide a productive balance between cutting engagement, stability and surface finish.
• Unequal 35°–38° spiral angles: Variable helix geometry promotes smooth, vibration-reduced running and helps support good surface quality.
• ALUNIT-S coating: Maykestag coating for demanding carbide milling applications and increased resistance to wear.
• Solid carbide construction: High rigidity and dimensional stability for precision machining.
• Long-series, necked design: Provides extended reach for machining deeper contours and profiles.
• DIN 6527L: Manufactured as a long solid carbide milling tool according to the specified standard.
• DIN 6535-HA shank: Cylindrical shank configuration for standard toolholding systems.
• d2 h6 shank tolerance: Precision 20mm shank for accurate toolholding.
• Long 104mm overall length: Provides additional reach for extended machining requirements.
• 30mm effective length: Substantial cutting length for contouring and profiling operations.

Designed for Smooth Contouring and Profiling

The ballnose geometry of the Speedcut Universal allows the cutter to follow curved surfaces and three-dimensional contours while maintaining a consistent cutting radius. The unequal 35°–38° spiral angles are designed to promote a smooth, vibration-reduced cutting action, supporting good machining stability and surface quality.

The long, necked configuration provides additional clearance and reach when machining recessed or contoured features. With its four-flute construction, solid carbide body and ALUNIT-S coating, the Code 7357 is suited to a broad range of professional milling operations.
