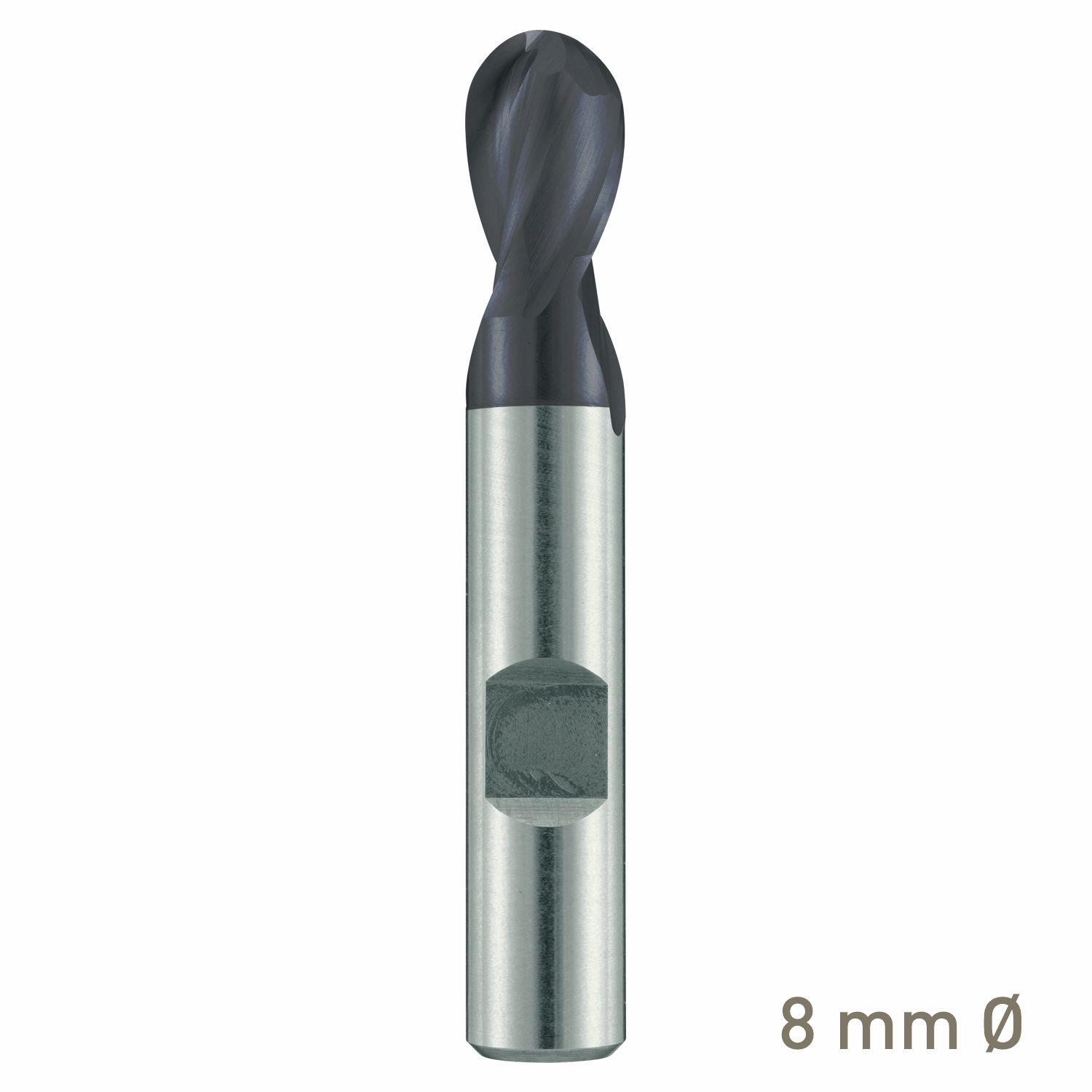

MAYKESTAG ALUNIT HSS-Co8 slot end mill with radius 8mm short series

Maykestag ALUNIT HSS-Co8 slot end mill with radius 8mm short series

Professional 8mm short-series slot end mill manufactured from HSS-Co8 and coated with ALUNIT®, featuring a 4mm radius, two flutes, centre-cutting geometry and a 30° Type N normal helix for accurate contouring, profiling, slotting and general milling applications.

The Maykestag Series 1057 is a precision HSS-Co8 slot end mill with a radiused cutting end, designed for machining curved profiles, rounded transitions, slots and contoured surfaces. Its centre-cutting geometry allows the cutting edges to work across the centre of the tool, making it suitable for applications where the cutter needs to enter the workpiece as well as cut laterally. The short-series construction provides increased rigidity and helps reduce tool deflection, supporting accurate machining and a consistent finish. The ALUNIT® coating provides a hard, wear-resistant cutting surface designed to reduce friction and heat load while supporting increased cutting speeds, productivity and consistent machining performance.

Product highlights

• HSS-Co8 construction: High-cobalt high-speed steel provides excellent toughness, heat resistance and cutting-edge durability for demanding milling applications.
• ALUNIT® coating: Super-hard TiAlN coating technology provides reduced friction, lower heat load and improved resistance to cutting-edge wear, supporting increased cutting speeds and productivity.
• 8mm cutting diameter: Provides a versatile cutting size for slotting, contouring, profiling and general milling applications.
• 4mm cutting radius: Produces rounded slot profiles, curved surfaces and smooth transitions.
• Short-series design: The compact construction increases tool rigidity and helps minimise deflection during machining.
• Two-flute geometry: Provides useful flute space for effective chip evacuation during slotting and milling operations.
• Centre cutting: Cutting edges extend across the centre, allowing the cutter to enter the workpiece as well as perform lateral milling.
• Type N geometry: Normal helix geometry designed for general-purpose milling applications.
• 30° spiral angle: Provides a balanced cutting action and assists with effective chip removal.
• WN specification: Manufactured according to the specified Maykestag works-standard geometry.
• DIN 1835-B shank: Shank form with driving flat for secure tool holding in suitable toolholding systems.
