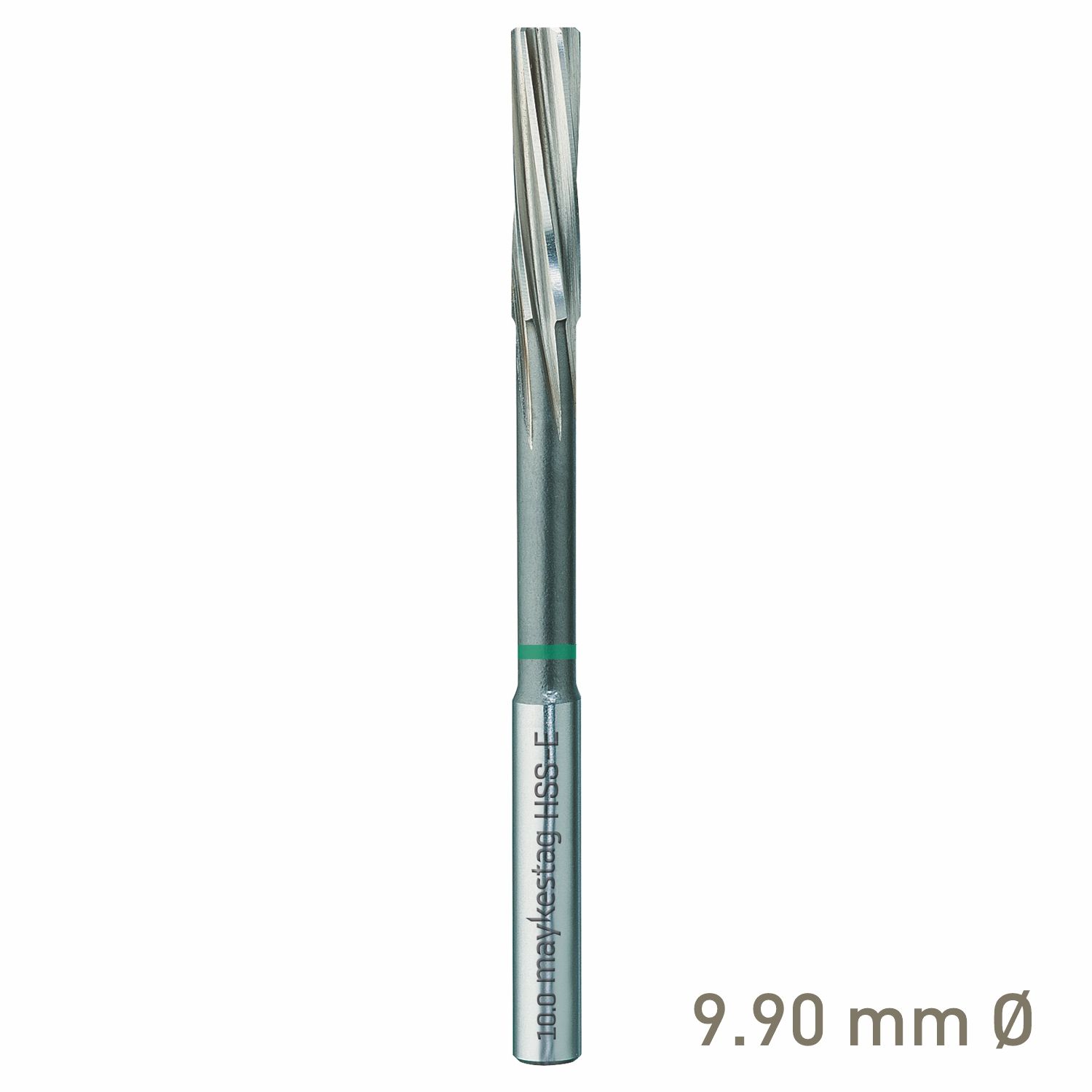

Maykestag HSS-E NC Machine Reamer 9.9mm Left-Hand Spiral

At a Glance: Precision 9.9mm H7 NC machine reamer manufactured from HSS-E with left-hand spiral flutes and a precision 10mm h6 cylindrical shank.

The Maykestag Code 3080 9.9mm NC machine reamer is designed for precision sizing and finishing of pre-machined holes. Manufactured from HSS-E high speed steel and produced in a Form D, left-hand spiral configuration similar to DIN 212, it provides the controlled cutting geometry required for accurate machine reaming. The 9.9mm reaming diameter is manufactured to H7 tolerance, while the 10mm cylindrical shank uses an h6 tolerance for accurate tool holding.

Precision finishing for accurately sized holes

A reamer removes only a small amount of material from an existing hole, bringing it to its final diameter while improving dimensional accuracy and surface finish.

Product highlights

H7 reaming diameter: 9.9mm precision diameter for accurate hole finishing.
HSS-E construction: Cobalt-alloyed high speed steel offers excellent wear resistance and cutting performance.
Left-hand spiral: Spiral flute geometry designed for controlled machine reaming.
Precision shank: 10mm cylindrical shank manufactured to h6 tolerance.
Form D geometry: Maykestag NC machine reamer design similar to DIN 212.

Features

NC machine reamer for precision hole finishing
9.9mm reaming diameter with H7 tolerance
Left-hand spiral flute geometry
Form D
HSS-E tool material
10mm cylindrical shank with h6 tolerance
6 cutting flutes
Manufactured similar to DIN 212

Benefits

Accurate finished holes: H7 reaming tolerance supports precision sizing after the hole has been pre-machined.
Controlled machining: Left-hand spiral flute geometry provides stable cutting action during machine reaming.
High wear resistance: HSS-E construction is suited to demanding metalworking applications.
Accurate tool holding: The h6 cylindrical shank provides a precisely controlled shank diameter.
Professional machining: Designed for accurate, repeatable hole finishing on suitable machine tools and CNC equipment.

Recommended Applications

Steels below 400 N/mm²

4/4 Ideal

Steels below 850 N/mm²

4/4 Ideal

Steels below 1,100 N/mm²

3/4 Especially Suitable

Steels below 1,300 N/mm²

2/4 Suitable

Stainless Steels below 850 N/mm²

2/4 Suitable

Stainless Steels above 850 N/mm²

2/4 Suitable

Cast Iron & Malleable Cast Iron

3/4 Especially Suitable

Titanium & Titanium Alloys

2/4 Suitable

Copper & Brass

2/4 Suitable

Aluminium

2/4 Suitable

Extra Information

A machine reamer is a finishing tool and should be used on an accurately positioned, correctly sized pre-machined hole.
The catalogue specifies a 9.9mm finished reaming diameter with H7 tolerance.
The 10mm shank diameter is manufactured to h6 tolerance.
Maykestag lists this Code 3080 range as similar to DIN 212.
No suitability rating is specified by Maykestag for steels above 45 HRC or plastics.

Pro Tips

Do not use a reamer to create the original hole. Drill, bore or otherwise pre-machine the hole first, leaving only the appropriate amount of material for final reaming.
Use the correct cutting speed, feed and lubricant for the workpiece material. Maykestag cutting-condition recommendations can be referenced in the MaySpeedGuide.
Accurate alignment between the reamer and the existing hole is important for achieving the intended H7 result and preventing premature tool wear.
Avoid stopping or reversing the reamer while its cutting edges are engaged in the workpiece unless specifically permitted by the machining process.

Specifications

Description	Spec
Brand:	Maykestag
Cat No:	MAY30800099
Maykestag Art. No.:	0308000990100
Series:	Code 3080
Product Type:	NC Machine Reamer
Standard:	Similar to DIN 212
Form:	D
Tool Material:	HSS-E - Cobalt-Alloyed High Speed Steel
Flute Geometry:	Left-Hand Spiral
Reamer Diameter (d1):	9.90mm
Reamer Tolerance:	H7
Shank Diameter (d2):	10.00mm
Shank Tolerance:	h6
Overall Length (l1):	133mm
Flute Length (l2):	38mm
Length to Shank (l3):	93mm
Number of Flutes (Z):	6

Scope of delivery

1 x Maykestag HSS-E NC Machine Reamer 9.9mm Left-Hand Spiral
