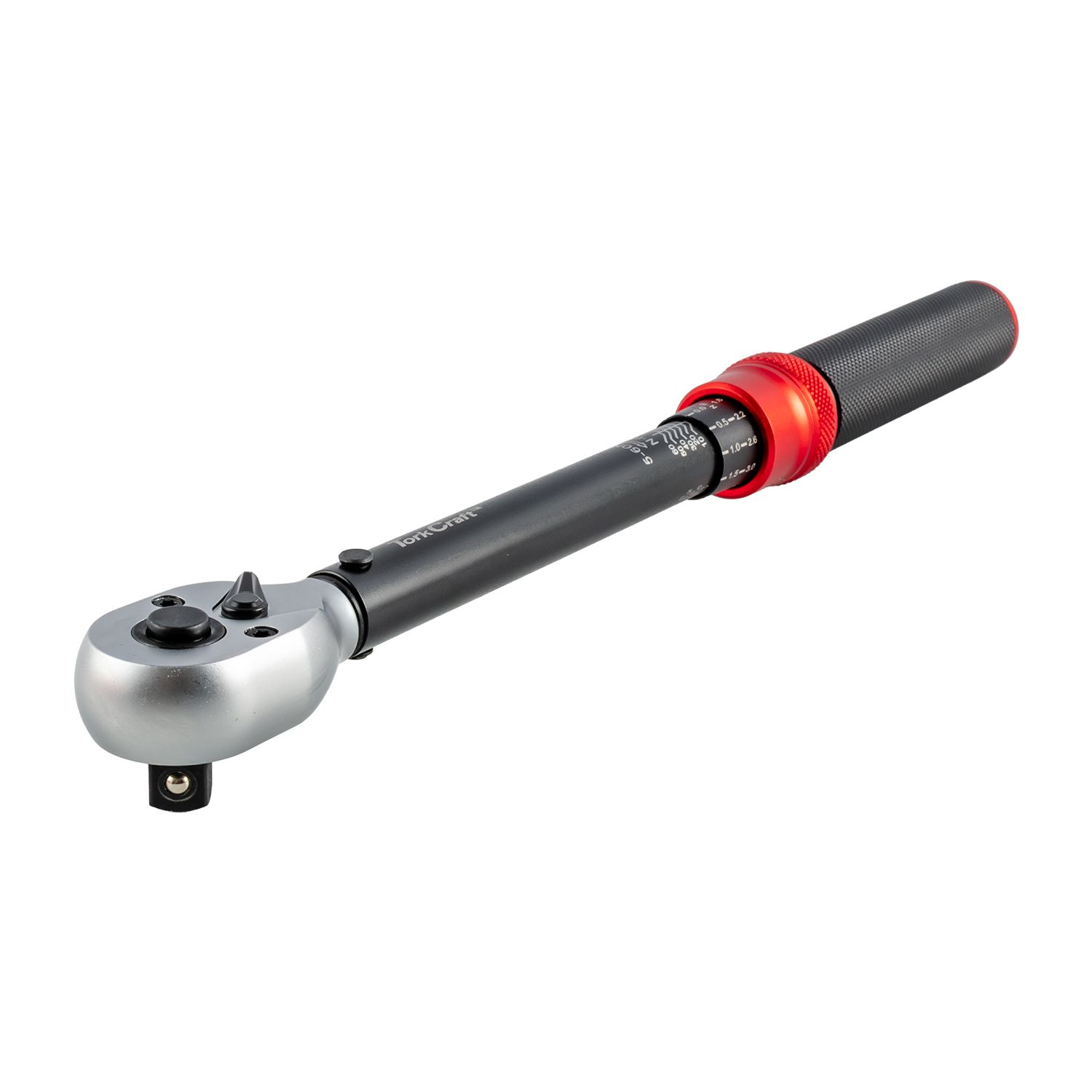

Name: TORK CRAFT Mechanical Torque Wrench 3/8" Drive 5-60Nm TCTQ3860-01
Brand: TORK CRAFT
SKU: TCTQ3860-01
Price: 1598.00 ZAR
Availability: InStock

TORK CRAFT Mechanical Torque Wrench 3/8" Drive 5-60Nm TCTQ3860-01

Stock: 1 - 5 Days
Cat No: TCTQ3860-01 19788
SKU: TCTQ3860-01
UPC: 6009515876210

TORK CRAFT

Product Views: 842

Based on 0 reviews. - Write a review

R 1,598.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Tork Craft Mechanical Torque Wrench 3/8" Drive 5-60Nm TCTQ3860-01

At a Glance: Precision 3/8" drive mechanical torque wrench with a 5-60Nm torque range, ±3% accuracy, 72-tooth ratchet mechanism and macro and micro torque scales for controlled adjustment.

The Tork Craft TCTQ3860-01 Mechanical Torque Wrench is designed to loosen or tighten screws, bolts and nuts to a desired torque setting. Its 3/8" square drive and broad 5-60Nm torque range provide a practical combination for controlled fastening applications where accurate and repeatable torque settings are required.

The wrench features clearly defined macro and micro torque scales to assist with selecting the required torque value. Adjustment is provided in 1Nm increments, while the adjustment locking collar helps secure the selected setting before use.

A 72-tooth ratchet mechanism provides fine ratcheting movement for improved control where available handle movement is limited. The direction paddle allows quick selection of the ratchet direction, while the knurled aluminium handle provides a positive gripping surface. The wrench combines an aluminium handle with a steel body for a strong mechanical construction.

Versatile 3/8" drive torque control from 5 to 60Nm

The TCTQ3860-01 offers a useful 5-60Nm working range with a 3/8" square drive, dual torque scales and a locking adjustment system. Its straightforward mechanical design makes it easy to set a required torque value and apply controlled torque to suitable screws, bolts and nuts.

Product highlights

5-60Nm torque range: Provides a broad adjustment range for controlled fastening applications.
3/8" square drive: Designed for use with suitable 3/8" drive sockets and accessories.
±3% accuracy: Provides controlled and repeatable torque application.
1Nm increment: Allows convenient torque adjustment throughout the specified range.
72-tooth ratchet: Provides fine incremental ratcheting movement during use.
Macro torque scale: Provides the main reference when selecting the desired torque value.
Micro torque scale: Works together with the macro scale for setting the required torque.
Adjustment locking collar: Helps secure the selected torque setting before torque is applied.
Direction paddle: Allows quick selection of the ratchet operating direction.
Knurled aluminium handle: Provides a textured gripping surface for secure handling.
Dual torque units: Torque settings are provided in Nm and lb.ft.
Protective storage: Supplied in a blow moulded case with the user manual.

Compatible accessories

3/8" drive sockets
Suitable 3/8" drive socket accessories
Compatible adaptors where suitable for the application

Features

3/8" square drive
5-60Nm torque range
±3% accuracy
1Nm torque increment
Nm and lb.ft torque units
72-tooth ratchet mechanism
Macro torque scale
Micro torque scale
Direction paddle
Adjustment locking collar
Knurled grip aluminium handle
Steel body
Supplied in a blow moulded storage case

Benefits

Controlled fastening: Allows screws, bolts and nuts to be tightened to a selected torque value instead of relying on feel alone.
Versatile torque range: The 5-60Nm working range gives this model greater torque capacity than the lower-range models in the series.
Simple mechanical adjustment: Macro and micro scales provide a clear method of selecting the required torque setting.
Secure adjustment: The locking collar helps prevent unintended movement of the selected torque setting during use.
Fine ratcheting action: The 72-tooth mechanism provides small incremental ratchet movements for improved control.
Positive grip: The knurled aluminium handle provides a textured surface for confident handling.
Two measurement units: Nm and lb.ft markings provide convenient reference when working from different torque specifications.
Protected storage: The supplied blow moulded case provides dedicated storage for the precision torque wrench.

Application

Tightening screws to a desired torque setting
Tightening bolts to a desired torque setting
Tightening nuts to a desired torque setting
Loosening screws, bolts and nuts where appropriate
Controlled fastening applications requiring a 3/8" square drive

Extra Information

Understanding the macro and micro torque scales

The TCTQ3860-01 uses both a macro torque scale and a micro torque scale as part of its mechanical adjustment system. Together, these scales allow the required torque setting to be selected within the wrench&s 5-60Nm working range.

Adjustment locking collar

Once the required torque value has been selected, the adjustment locking collar helps secure the setting before the wrench is used. This is particularly useful when the same torque setting needs to be maintained while working on several fasteners.

72-tooth ratchet mechanism

The TCTQ3860-01 uses a 72-tooth ratchet mechanism. The fine-tooth design provides smaller incremental ratcheting movements, helping the wrench operate effectively where available handle movement may be limited.

Nm and lb.ft torque scales

The wrench provides torque settings in Newton metres (Nm) and pound-feet (lb.ft). This allows convenient reference when the required torque specification is provided in either of these measurement units.

Torque wrench calibration

A torque wrench is a precision tool and should be recalibrated periodically. Tork Craft recommends that calibration be checked at least once a year, after abnormal handling or overloading, or after approximately 5000 cycles.

Correct handling matters

Do not apply torque in excess of the maximum capacity of the wrench. Always apply load through the grip and never use a pipe, handle extension bar or other device to create additional leverage.

Pro Tips

Confirm the required torque: Determine the correct torque value before adjusting the wrench.
Stay within the range: Never exceed the maximum 60Nm capacity of the wrench.
Read both scales: Use the macro and micro torque scales together when selecting the required setting.
Lock the adjustment: Secure the selected setting using the adjustment locking collar before applying torque.
Use the correct socket: Fit a suitable 3/8" drive socket that matches the fastener correctly.
Apply load through the grip: Use the knurled aluminium handle as the intended load point.
Never add leverage: Do not place a pipe or extension bar over the handle.
Protect its accuracy: Avoid abnormal handling, impacts and overloading of the torque wrench.
Store it correctly: Keep the wrench in its blow moulded case and away from excessive heat, humidity and direct sunlight.

How to Use

Confirm the required torque: Determine the correct torque value for the screw, bolt or nut being worked on.
Select the torque setting: Use the macro and micro torque scales to set the required value within the 5-60Nm operating range.
Lock the setting: Secure the selected torque using the adjustment locking collar.
Select the ratchet direction: Position the direction paddle as required for the application.
Fit the socket: Attach a suitable 3/8" drive socket securely to the square drive.
Position the wrench: Place the socket correctly and securely onto the fastener.
Grip correctly: Hold the wrench by the knurled aluminium handle and apply load through the grip.
Apply torque steadily: Apply controlled force while keeping the wrench properly aligned with the fastener.
Do not overload: Never apply torque beyond the wrench&s maximum 60Nm capacity.
Store safely: Return the torque wrench to its blow moulded case after use and keep it away from excessive heat, humidity and direct sunlight.

Safety

Do not apply torque in excess of the maximum capacity of the wrench.
Apply load through the grip only.
Do not use handle extension bars or pipes to gain additional leverage.
Do not disassemble the torque wrench for any reason.
Highly stressed internal components may cause severe injury if released unintentionally.
The torque wrench should be recalibrated periodically to maintain accuracy.
Calibration should be checked at least once a year, after abnormal handling or overloading, or after approximately 5000 cycles.
Do not leave the wrench where it will be exposed to excessive heat, humidity or direct sunlight.

Specifications

Product Specifications
Brand	Tork Craft
Cat No.	TCTQ3860-01
Product Type	Mechanical Torque Wrench
Square Drive	3/8"
Torque Range	5-60Nm
Maximum Torque	60Nm
Accuracy	±3%
Increment	1Nm
Torque Units	Nm & lb.ft
Ratchet Gears	72
Torque Scales	Macro & Micro
Direction Control	Direction Paddle
Torque Setting Lock	Adjustment Locking Collar
Handle	Knurled Grip Aluminium Handle
Handle Material	Aluminium
Body Material	Steel
Packaging Type	Blow Moulded Case
Barcode	6009515876210

In the box:

1 x Tork Craft TCTQ3860-01 Mechanical Torque Wrench
1 x User Manual
1 x Blow Moulded Storage Case

Tags: Mechanical Torque Wrench , Torque Wrench , Tork Craft , TCTQ3860-01 , 3/8 Torque Wrench , 5-60Nm Torque Wrench , 60Nm Torque Wrench , Precision Torque Wrench , Torque Tools , 72 Tooth Ratchet
